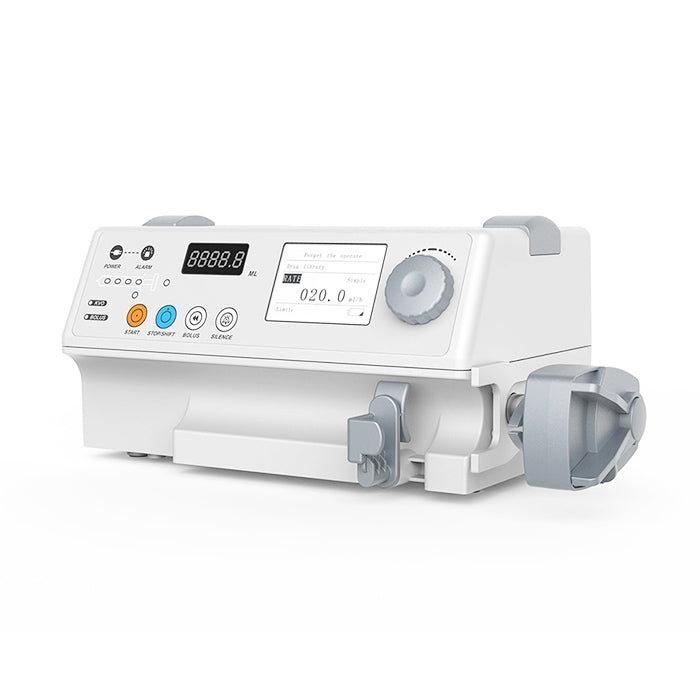

Byond Syringe Pump

Syringe Pump for Hospital Use – Precision Infusion with Advanced Safety Features

The Syringe Pump is a high-precision infusion system designed to meet the critical requirements of hospitals and healthcare facilities. Featuring an HD LCD display, user-friendly interface, and multi-mode infusion settings, this pump ensures accurate, safe, and efficient administration of fluids and medications.

Compatible with syringes from all major brands, it offers audible and visual alarms to safeguard patient care, while its stackable design and multiple power sources enhance its versatility.

Key Specifications:

• Capacity: 5ml, 10ml, 20ml, 30ml, 50/60ml syringes (compatible with all brands)
• Display: HD LCD with dynamic working status updates
• Flow Rate: 0.1 – 1200 ml/h
• Power Supply:
  • AC 100–240V, 50/60Hz
  • Internal rechargeable battery
  • DC 12V car charger compatibility
• Working Modes:
  • Rate Mode: Set flow rate (ml/h)
  • Time Volume Mode: Set infusion volume over a time period
  • Dosage Weight Mode: Drug dosage based on patient weight
• Occlusion Levels: High, Medium, Low
• Dimensions (LxWxH): 305 x 132 x 114 mm
• Weight: 1.7 kg
• Common/Generic Name: Infusion Pump

Advanced Features:

✅ HD LCD Display: Clear screen with high-capacity word display and dynamic working status updates.
✅ Multi-Brand Syringe Compatibility: Works with 5ml, 10ml, 20ml, 30ml, 50/60ml syringes from any brand.
✅ 3 Working Modes: Choose between Rate Mode, Time Volume Mode, and Dosage Weight Mode for flexible infusion settings.
✅ Safety Alarms: Visual and Audible alerts for occlusion, empty syringe, near-empty, low battery, end of infusion, loose syringe, and incorrect settings.
✅ Occlusion Pressure Levels: Adjustable settings – High, Medium, Low.
✅ Purge & Bolus Function: Allows quick delivery of fluid when required.
✅ KVO Function: Keeps the vein open (0.1-5ml/h) automatically after infusion is complete.
✅ Stackable Design: Stack multiple syringe pumps together for multi-line infusion, suitable for critical care settings.
✅ Power Flexibility: Operates via AC power, internal battery, or DC 12V car charger.
✅ One-Key Operation: Simple setup and easy one-hand syringe loading in sterile environments.
✅ Memory Recall: Automatically records the last infusion settings for convenience.

Benefits:

✔️ Accurate Infusion: Reduces dosage errors and ensures precise fluid administration.
✔️ User-Friendly: Easy setup with intuitive controls and a bright display.
✔️ Nurse Convenience: Preset solution volume option reduces nurse workload.
✔️ Portability & Versatility: Lightweight design and multiple power sources enable use in various hospital settings, including ambulances and home care.
✔️ Enhanced Patient Safety: Real-time monitoring and multi-level alarms for immediate issue detection.

Frequently Asked Questions (FAQs):

Q: Which syringe sizes are supported by this pump?
A: The pump is compatible with 5ml, 10ml, 20ml, 30ml, and 50/60ml syringes from any brand.

Q: What happens when the infusion is complete?
A: The KVO (Keep Vein Open) function is activated automatically, maintaining a flow rate of 0.1-5ml/h to prevent vein blockage.

Q: Does the pump have battery backup?
A: Yes, it operates on an internal rechargeable battery, AC power, or DC 12V car charger, ensuring uninterrupted use.

Q: Can multiple syringe pumps be used together?
A: Yes, the pump is stackable, allowing multiple pumps to be securely attached for complex infusions.

Q: Is this pump suitable for ICU and critical care units?
A: Absolutely. Advanced alarm systems, multiple infusion modes, and precise flow control make it ideal for ICUs, emergency rooms, and other critical care areas.

Manufacturer Details:

Country of Origin: India
Manufacturer/Importer/Marketed By: Meddey Technologies Pvt Ltd.
Address: C-75, First Floor, DDA Sheds, Industrial Area, Phase 1, Okhla, New Delhi – 110020
📞 Phone: +91 8586-012345
