3-in-1 Combination Therapy Unit – IFT + Muscle Stimulator + TENS (125 Programmes)

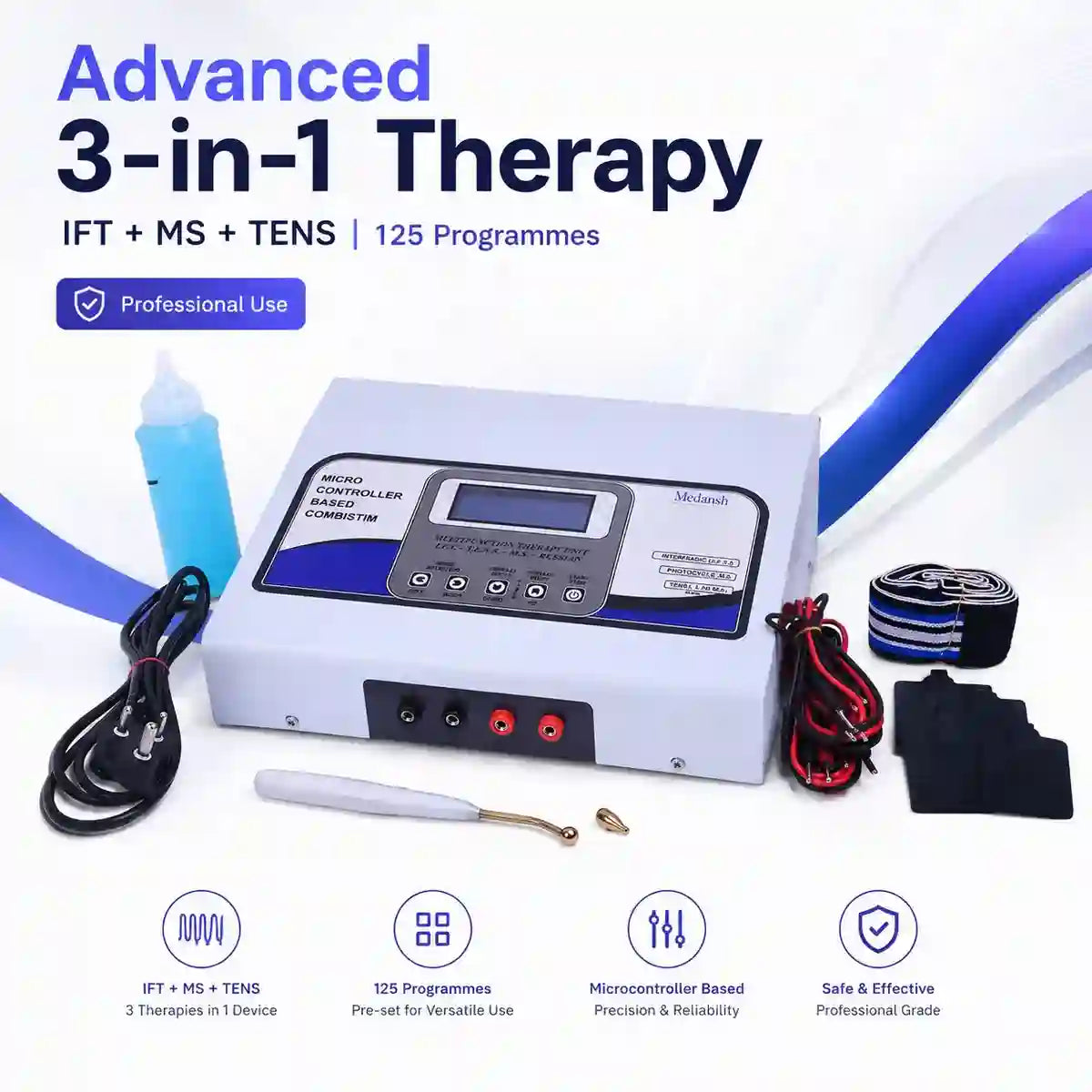

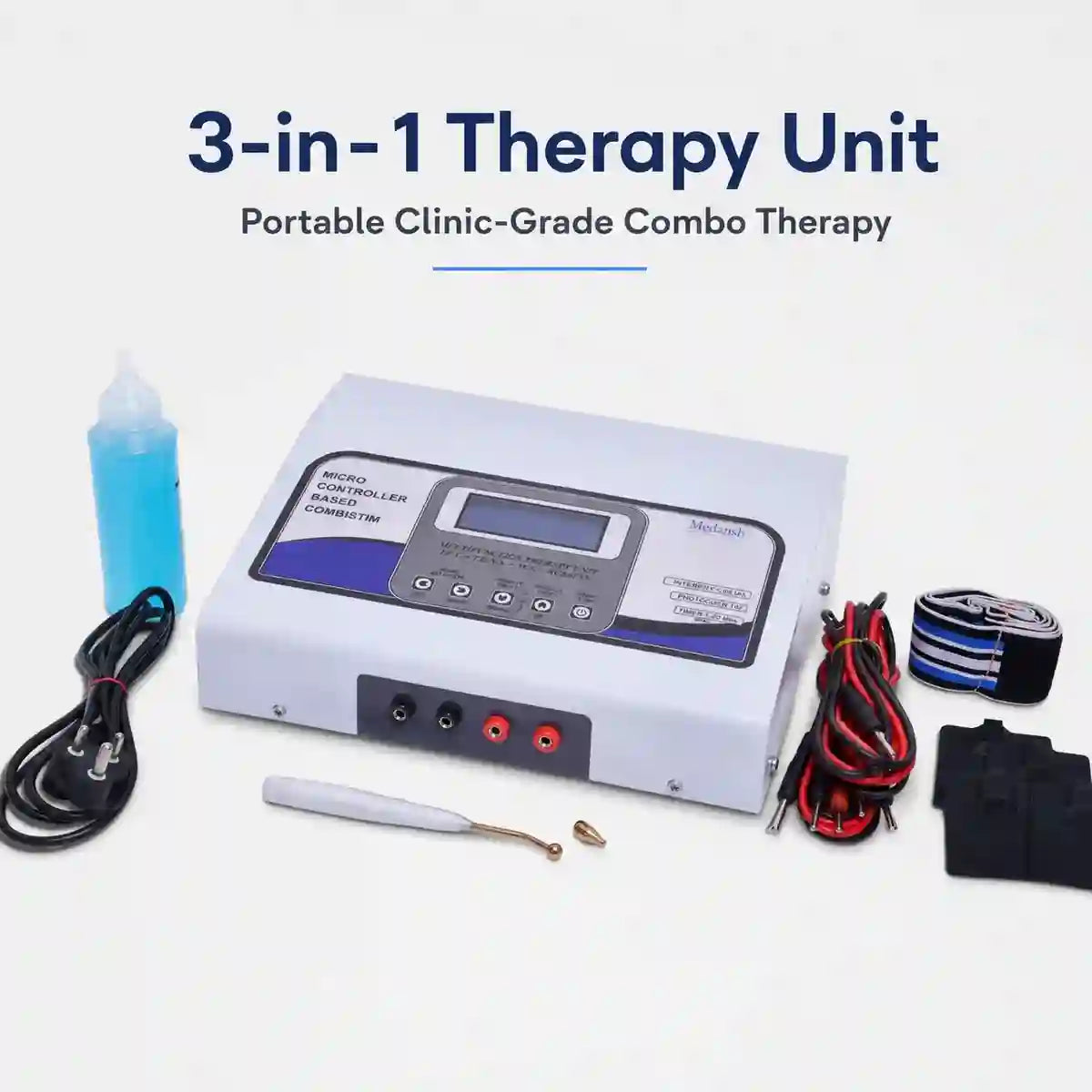

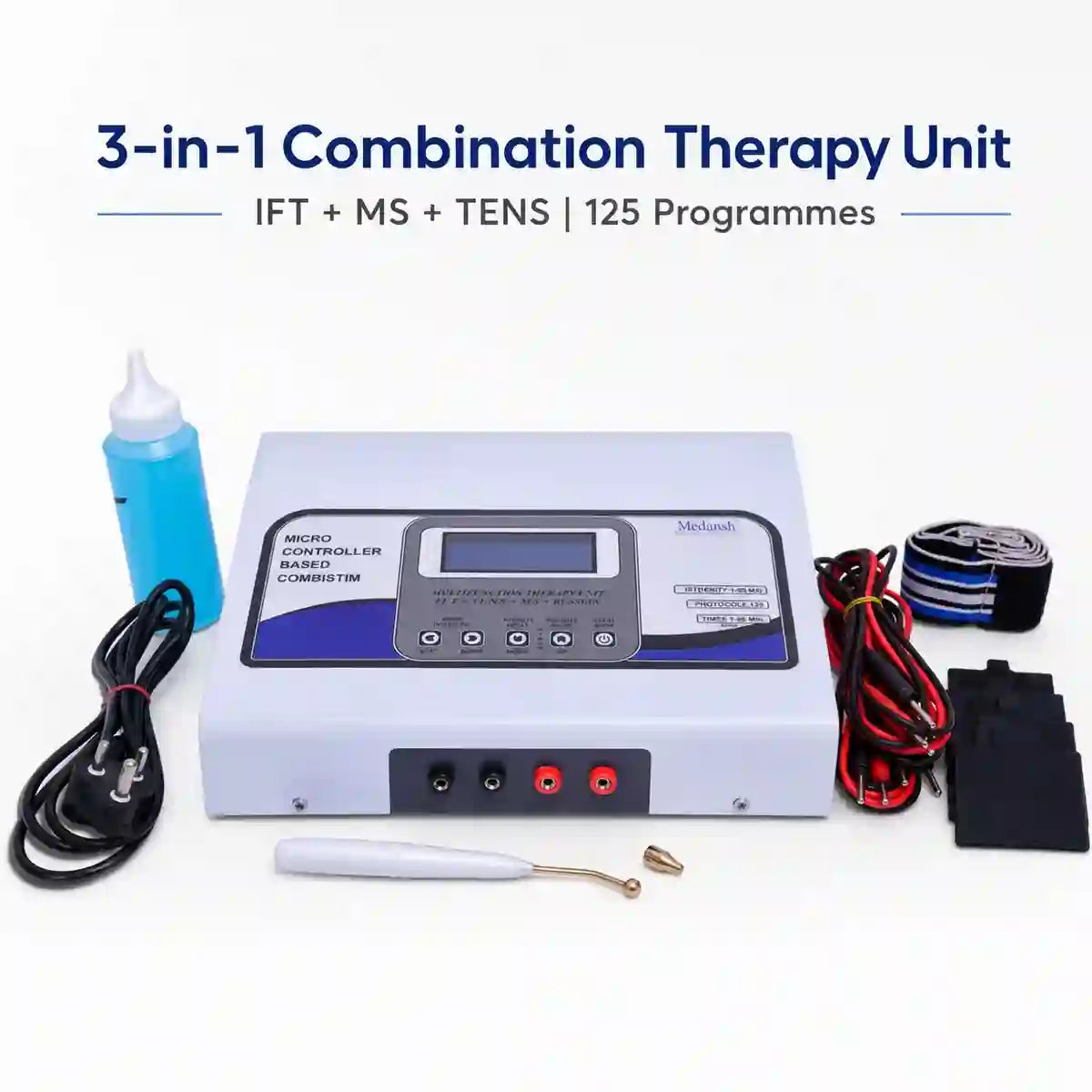

The Medansh 3-in-1 Combination Therapy Unit integrates Interferential Therapy (IFT), Muscle Stimulation (MS), and TENS into a single professional-grade device with 125 pre-programmed clinical protocols. This is the most recommended first equipment purchase for physiotherapy clinics — one machine covers 70% of all electrotherapy treatments you will deliver, from acute sports injuries to chronic degenerative conditions. Built for daily clinical throughput of 15–25 patients, this unit delivers consistent therapeutic output across all three modalities without the cost and space of three separate machines.

Three Modalities, One Machine

Interferential Therapy (IFT)

IFT delivers two medium-frequency currents (4,000Hz carrier) that cross and interfere at the treatment site, producing a low-frequency stimulation effect deep within the tissue. Because the carrier frequency is high, IFT penetrates deeper than conventional TENS (5–7cm vs 1–2cm) with significantly less skin resistance and discomfort. IFT is the modality of choice for deep-seated joint pain, chronic inflammation, oedema reduction, and improving local blood circulation in conditions like frozen shoulder, knee osteoarthritis, and lumbar disc degeneration.

Muscle Stimulation (MS)

The MS channel delivers faradic and galvanic currents to contract muscles through motor nerve stimulation. Used for muscle re-education after surgery, prevention of disuse atrophy during immobilisation, and strengthening weak muscles in neurological conditions. The surge mode creates rhythmic contraction-relaxation cycles that mimic natural muscle activity patterns — essential for quadriceps activation post-TKR, shoulder girdle strengthening after rotator cuff repair, and facial muscle stimulation in Bell’s palsy.

TENS (Transcutaneous Electrical Nerve Stimulation)

The TENS channel targets sensory nerves to block pain transmission via the gate control mechanism and stimulate endorphin release. Used for both acute and chronic pain management across all musculoskeletal conditions. The 125 pre-programmed protocols include specific settings for lower back pain, cervical spondylosis, knee OA, shoulder impingement, sciatica, and post-surgical pain — eliminating the need for manual parameter selection and reducing setup time per patient.

Why Clinics Choose Combination Therapy

• Cost Efficiency: One device replaces three — saves ₹40,000–60,000 versus purchasing IFT, MS, and TENS separately
• Space Saving: Single unit footprint instead of three machines on your therapy trolley
• Faster Treatment: Switch between modalities within the same session without disconnecting and reconnecting a different device
• Protocol Consistency: 125 pre-set programmes ensure every therapist in your clinic delivers standardised treatment parameters
• Training Simplicity: New therapists learn one interface instead of three different machines
• Patient Experience: Seamless transitions between modalities during a session improves perceived treatment quality

125 Pre-Programmed Protocols Include

• IFT protocols: 2-pole, 4-pole, constant frequency, sweep, isoplanar, vector scan
• TENS protocols: continuous, burst, modulated, acupuncture-like, high-frequency gate control
• MS protocols: faradic, galvanic, surge, interrupted galvanic, reciprocal

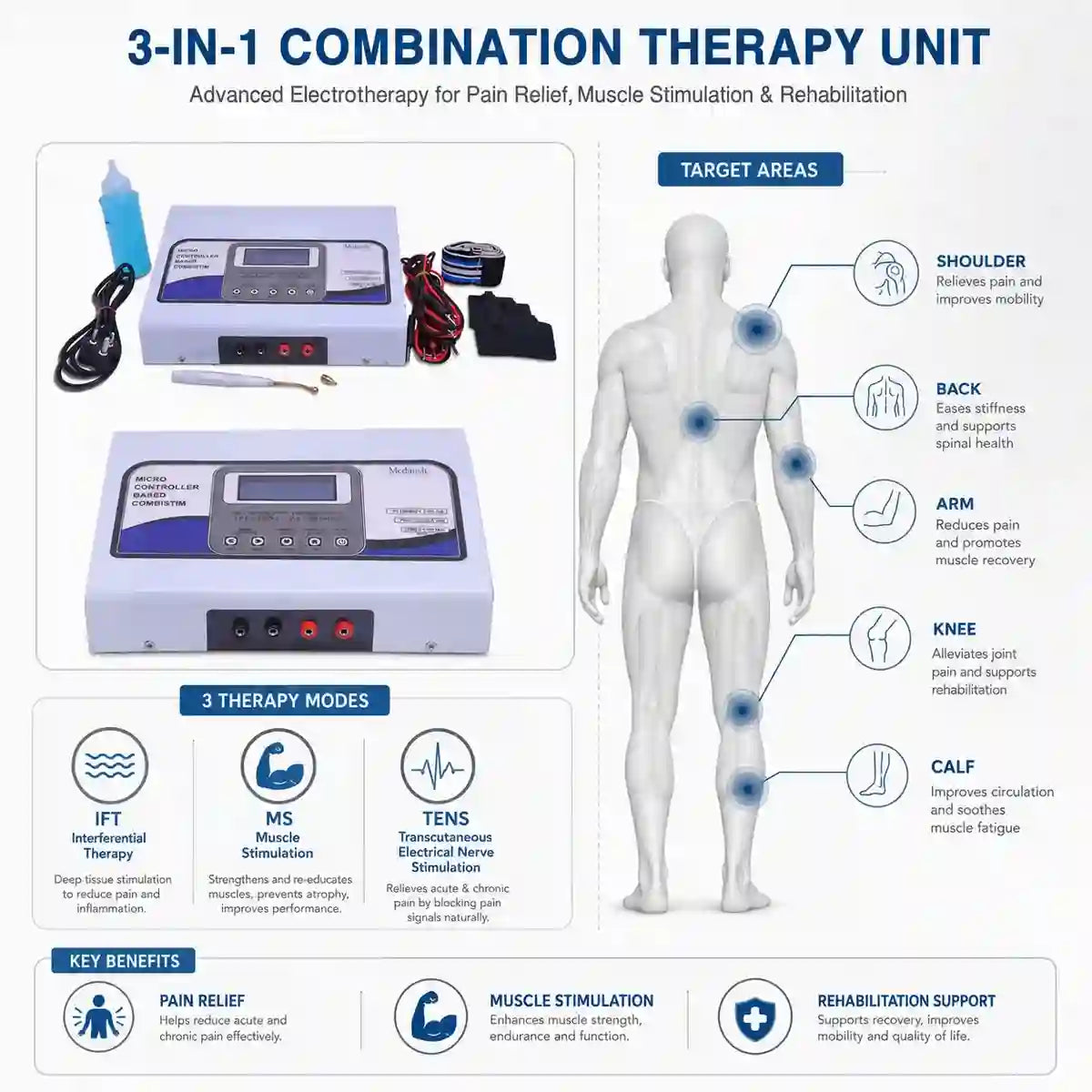

• Condition-specific presets: frozen shoulder, tennis elbow, carpal tunnel, sciatica, knee OA, cervical spondylosis, plantar fasciitis, post-TKR quadriceps activation

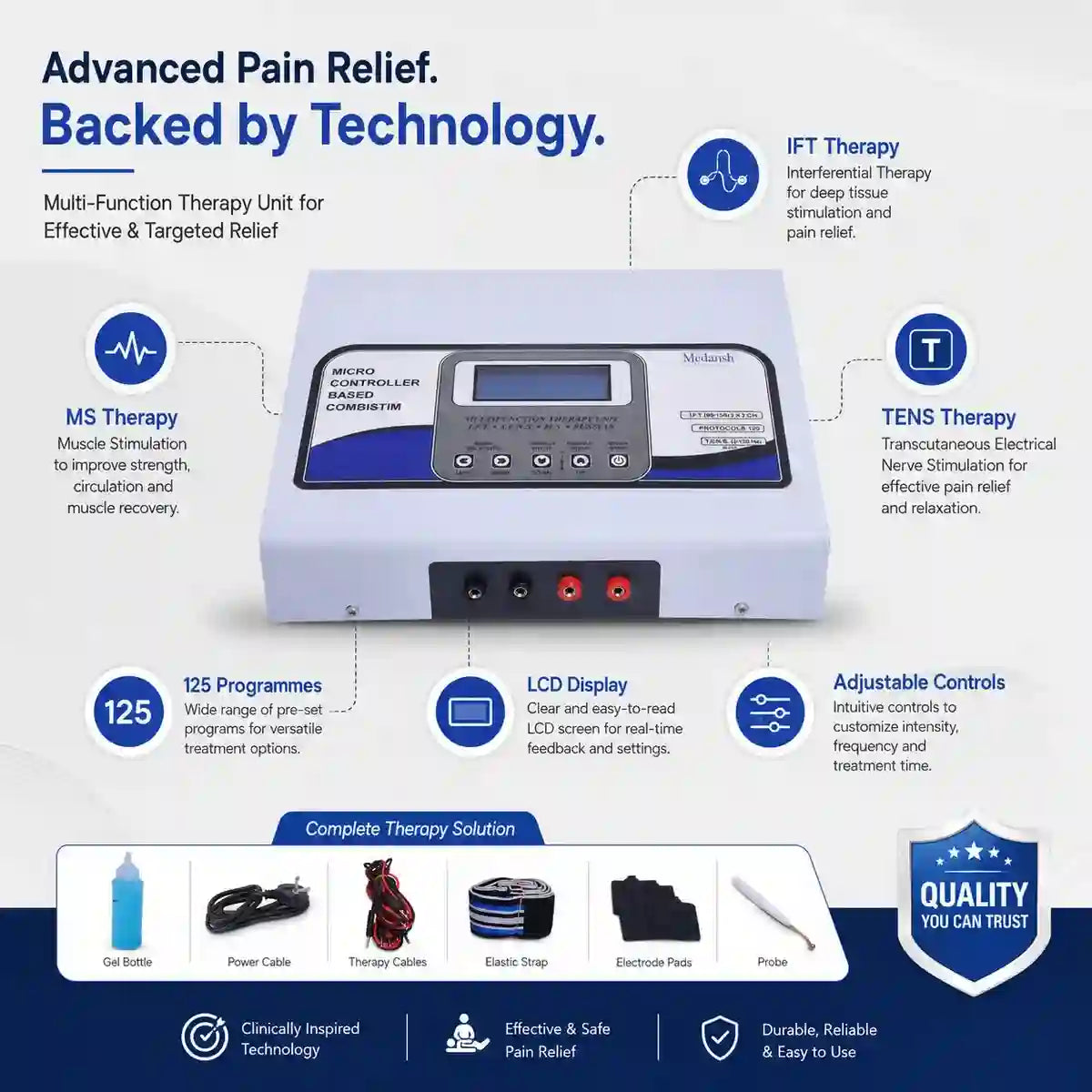

Key Features

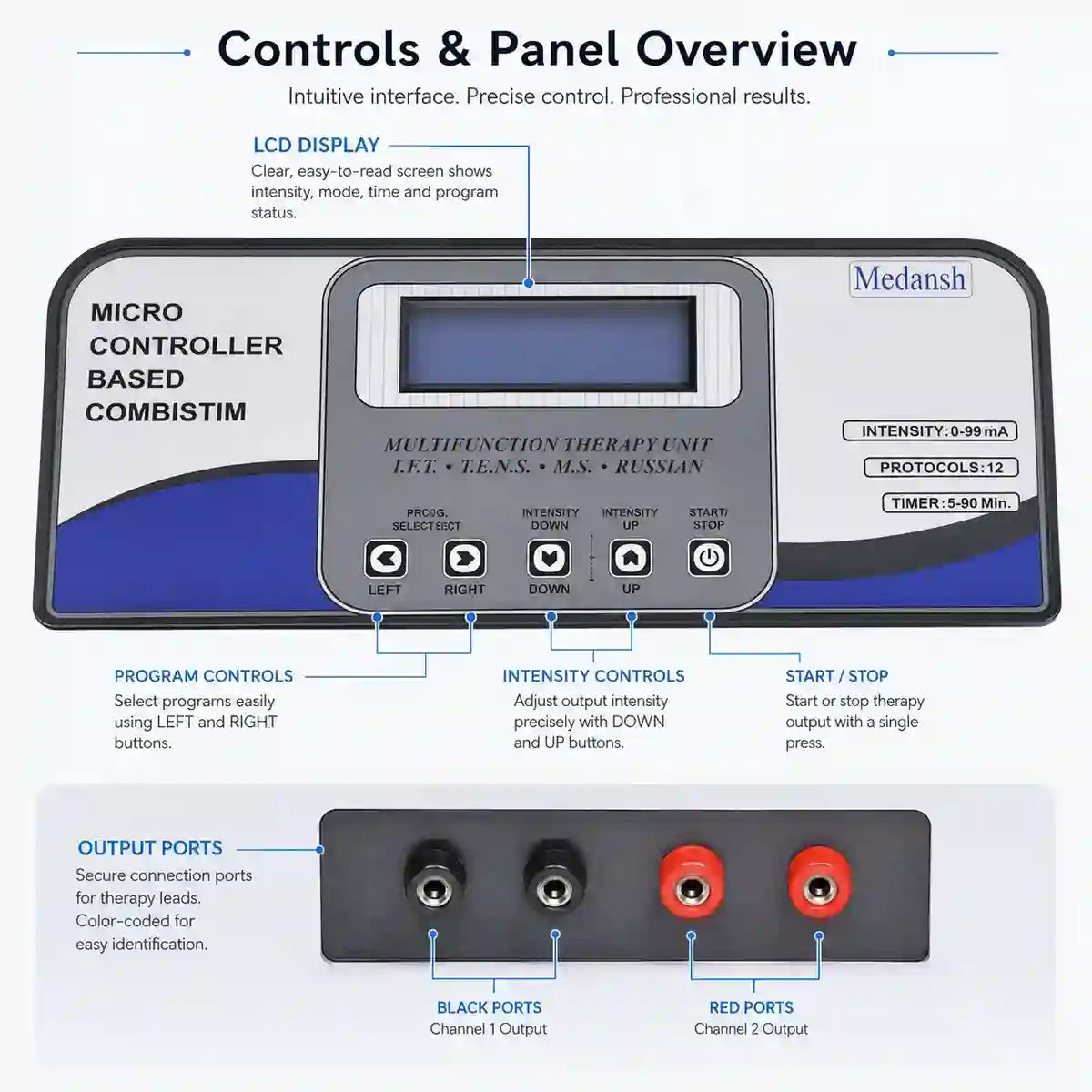

• LCD Digital Display: Clear parameter readout for all three modalities — frequency, pulse width, intensity, timer, and programme number
• Constant Current Output: Maintains therapeutic intensity regardless of skin impedance changes during treatment — essential for consistent clinical results
• 4 Output Channels: Treat multiple zones simultaneously for comprehensive coverage
• Safety Interlock: Automatic output ramp-up prevents sudden high-intensity application — protects sensitive patients
• Mains Powered: 220–240V AC for unlimited session duration in clinical settings
• Metal Housing: Built for 10+ years of daily clinical use

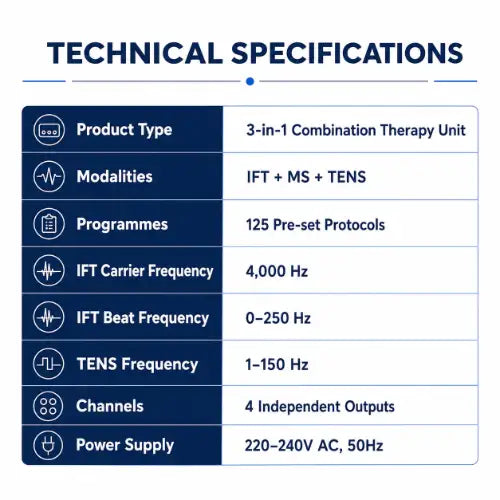

Specifications

• Modalities: IFT + MS + TENS (3-in-1)
• Programmes: 125 pre-set clinical protocols
• IFT Carrier Frequency: 4,000Hz
• IFT Beat Frequency: 0–250Hz
• TENS Frequency: 1–150Hz
• MS Modes: Faradic, Galvanic, Surge
• Channels: 4 independent outputs
• Display: LCD digital with backlight
• Output: Constant current
• Power: 220–240V AC, 50Hz

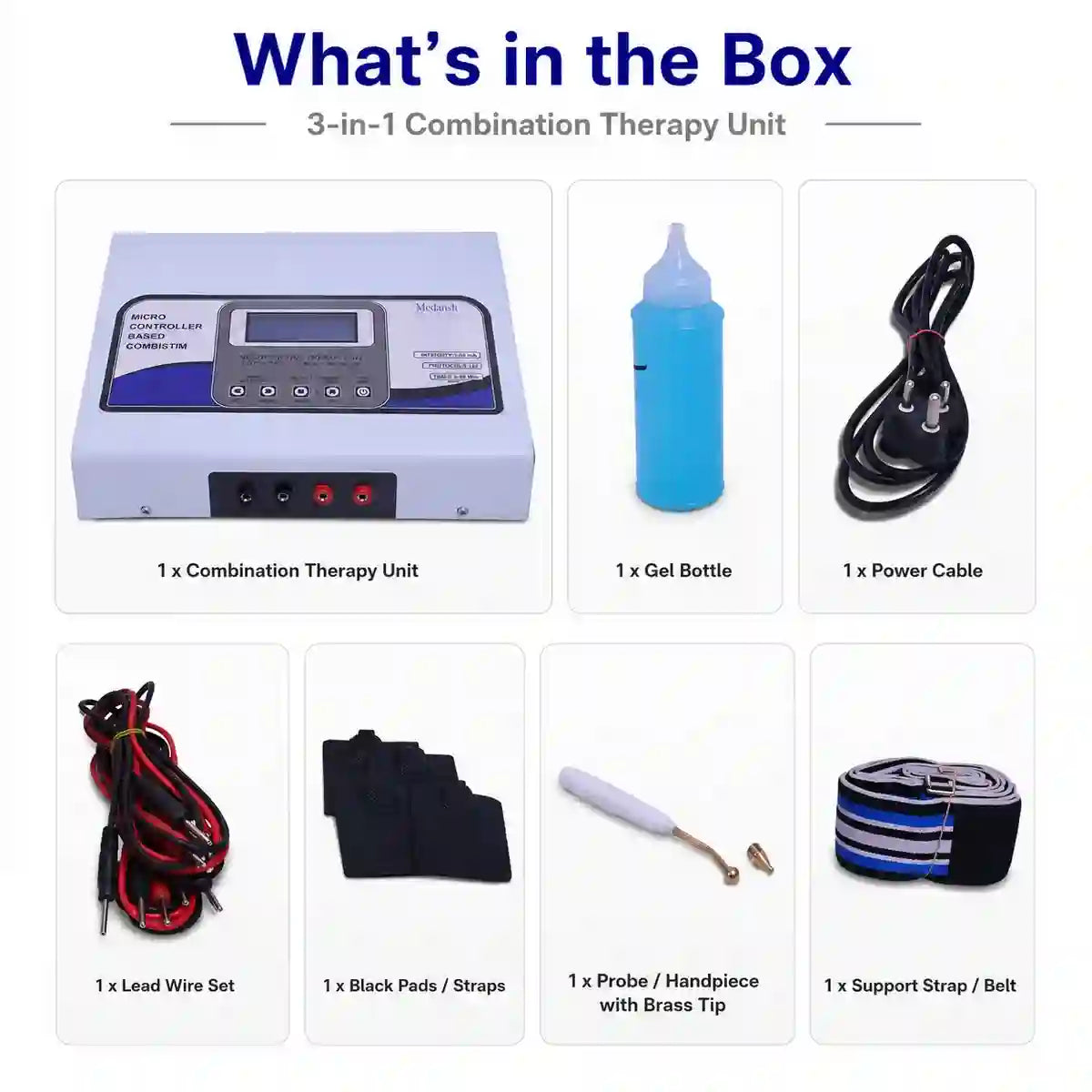

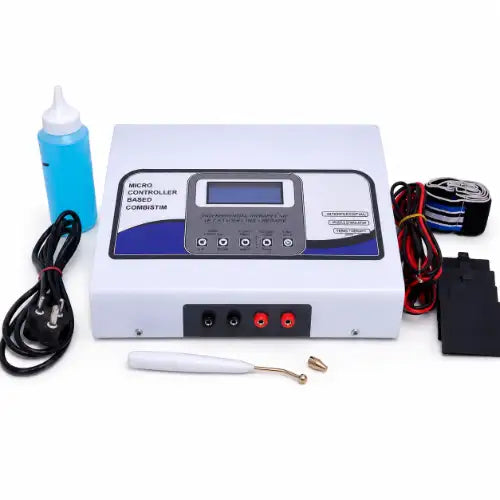

• Includes: 8 electrode pads, 4 lead wires, user manual, clinical protocol reference card
• Warranty: 2 years
• Country of Origin: Manufactured by Meddey Technologies Pvt. Ltd.

Frequently Asked Questions

Q: Is this sufficient as the only electrotherapy machine for a new clinic?
A: Yes. The 3-in-1 combination unit covers IFT, MS, and TENS — the three most prescribed electrotherapy modalities. Most established physiotherapy clinics started with exactly this configuration. You would only need a separate ultrasound machine to complete your core electrotherapy setup.

Q: How does IFT differ from TENS in clinical practice?
A: IFT penetrates deeper (5–7cm vs 1–2cm for TENS) due to its higher carrier frequency, making it superior for deep-seated conditions like hip joint arthritis, lumbar disc problems, and deep muscle spasm. TENS works best for superficial pain, nerve pain, and home-use maintenance between clinic sessions.

Q: Can I add my own custom protocols?
A: The 125 pre-set protocols cover virtually all common clinical scenarios. For custom settings, you can switch to manual mode and set frequency, pulse width, intensity, and timer independently for each modality.

Q: What training is provided?
A: Meddey provides a comprehensive training session (online or at your clinic) covering machine operation, electrode placement for each protocol, and clinical treatment planning. Call +91 8586-012345 to schedule.

Manufacturer: Meddey Technologies Pvt. Ltd., C-75, First Floor, DDA Sheds, Industrial Area, Phase 1, Okhla, New Delhi – 110020. Phone: +91 8586-012345
