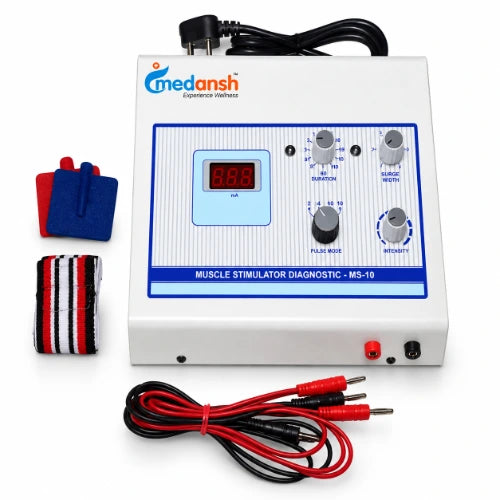

Medansh Diagnostic Muscle Stimulator for Physiotherapy

Diagnostic Muscle Stimulator for Physiotherapy – Key Features

What Is a Diagnostic Muscle Stimulator?

A diagnostic muscle stimulator is different from a basic home EMS unit. It gives a trained therapist more control over electrical pulse duration and current type.

For example, the therapist may change the pulse duration while checking how a muscle or nerve responds. As a result, the device can support structured electrotherapy assessment.

However, the unit does not diagnose a medical condition on its own. Instead, a qualified professional must interpret the response together with the patient's clinical assessment.

Physiotherapy Muscle Stimulator for Guided Treatment

A physiotherapy muscle stimulator can provide controlled electrical stimulation during selected rehabilitation sessions.

For example, a therapist may use electrical stimulation during muscle activation, movement training or another planned electrotherapy procedure.

Therefore, settings should match the user's condition and treatment goal. They should not simply copy settings used for another person.

Galvanic Faradic Stimulator – Modes Explained Simply

A galvanic faradic stimulator provides more than one type of electrical current. Therefore, trained users can choose a mode according to the planned procedure.

Galvanic Current

Galvanic current is a direct electrical current. For example, a trained therapist may use it during selected electrotherapy procedures.

Intermittent Galvanic Current

Intermittent galvanic current delivers direct current in separate intervals. Therefore, the current is not supplied continuously throughout the whole session.

Faradic Current

Faradic current uses short electrical pulses. In suitable cases, these pulses may create visible muscle contractions.

Surged Faradic Current

Surged faradic current alternates between stimulation and rest periods. In addition, this model allows both ON and OFF times to be adjusted from 1 to 10 seconds.

Iontophoresis

Iontophoresis uses electrical current to help deliver certain charged medicines through the skin. Because medicines are involved, trained professional guidance is essential.

Electrotherapy Muscle Stimulator with Diagnostic Settings

The electrotherapy muscle stimulator includes multiple diagnostic pulse durations. Therefore, professionals can select different pulse lengths during assessment.

For reference, the available diagnostic pulse durations are:

• 0.01 msec
• 0.03 msec
• 0.1 msec
• 0.3 msec
• 1 msec
• 3 msec
• 10 msec
• 100 msec
• 300 msec

In simple terms, pulse duration means how long each electrical pulse lasts. Therefore, changing this setting changes how the stimulation is delivered.

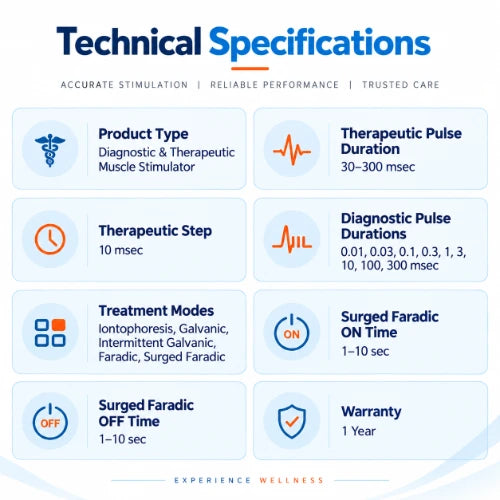

Diagnostic Muscle Stimulator for Physiotherapy – Technical Specifications

How Professionals Use a Muscle Stimulator Machine

1. First, assess the patient and confirm that electrical stimulation is appropriate.
2. Next, select the required treatment or diagnostic mode.
3. Then, position suitable electrodes according to the planned procedure.
4. After that, start with an appropriate controlled output level.
5. Next, adjust pulse duration or timing according to the treatment plan.
6. Meanwhile, monitor the patient's response throughout the session.
7. Finally, reduce the output before removing the electrodes.

Physiotherapy Muscle Stimulator – Possible Clinical Uses

A therapist may include a physiotherapy muscle stimulator in selected programmes involving muscle activation or guided electrotherapy.

For example, depending on the patient's condition, the device may support structured stimulation during professional rehabilitation. However, results can vary between people.

Therefore, the device should not be advertised as guaranteeing stronger muscles, faster healing, restored movement or complete pain relief.

What to Check Before Buying a Diagnostic Muscle Stimulator

• First, confirm whether you need diagnostic as well as therapeutic stimulation.
• Next, check whether galvanic and faradic modes match your clinical requirements.
• In addition, review the available diagnostic pulse durations.
• Also, check whether adjustable surged faradic timing is useful for your practice.
• Then, confirm how the device will be used in your clinic or rehabilitation setup.
• Finally, for home use, speak with your physiotherapist before purchasing.

Diagnostic Muscle Stimulator for Physiotherapy FAQs
