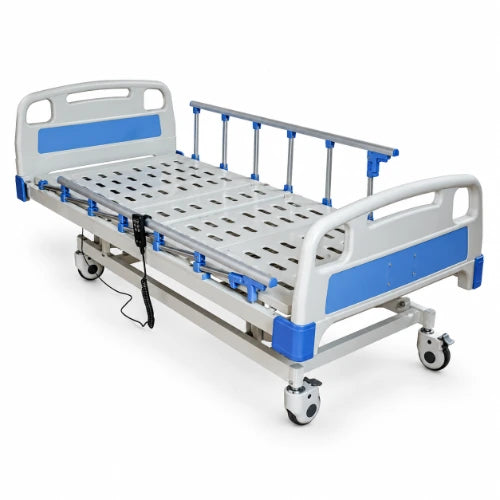

ICU Bed with 5 Electric Functions, ABS Panels & Collapsible Safety Rails
Choose options
If you are arranging advanced care for a family member, choosing a hospital bed can feel confusing because many features use medical names. This electric ICU bed with 5 functions gives caregivers several powered positioning options through a hand remote.
The five functions include backrest adjustment, knee-rest adjustment, bed height adjustment, Trendelenburg and reverse Trendelenburg. In simple words, the bed can change the person's upper-body position, leg position, overall bed height and whole-bed tilt.
In addition, the bed includes ABS head and foot panels, collapsible safety railings, a four-section mild-steel platform and braked wheels. Therefore, it combines electric adjustment with practical features for structured patient care.
Families may consider this type of bed when a person needs regular help with positioning at home. Meanwhile, hospitals, ICUs, nursing facilities and rehabilitation centres may also use it for suitable patient-care needs.
Ask Meddey about pricing, delivery, installation availability, COD / partial-payment options and GST invoicing.
Call or WhatsApp: +91 8586-012345
Electric ICU Bed with 5 Functions for Home Patient Care
A normal home bed may become difficult to manage when a family member needs frequent changes in position.
In contrast, this motorized hospital bed lets caregivers change several bed positions through a hand remote. As a result, suitable repositioning does not depend only on manual cranks or physical lifting.
For families, this may be useful when someone spends long periods in bed and regularly needs help with sitting, resting or changing position.
However, this is advanced care equipment. A caregiver should understand the controls, wheel brakes and safety railings before regular home use.
Electric ICU Bed with 5 Functions Explained Simply
Five Electric Functions of This ICU Hospital Bed
Electric Backrest Adjustment
The remote raises or lowers the upper bed section. Therefore, caregivers can change the person's upper-body position without using a manual crank.
Electric Knee-Rest Adjustment
The knee section moves electrically. As a result, caregivers have another way to adjust the person's resting position.
Electric Hi-Lo Hospital Bed Adjustment
Hi-Lo raises or lowers the complete bed. For example, a caregiver can choose a more suitable bed height for different care tasks.
Trendelenburg Bed Position
This function tilts the whole bed so the head end moves lower than the foot end. Because this is a clinical position, use it only when appropriate.
Reverse Trendelenburg Bed Position
This function tilts the whole bed in the opposite direction. Therefore, the head end sits higher than the foot end.
Hand Remote Operation
A hand remote controls the five listed electric functions. As a result, caregivers do not need separate manual cranks for those adjustments.

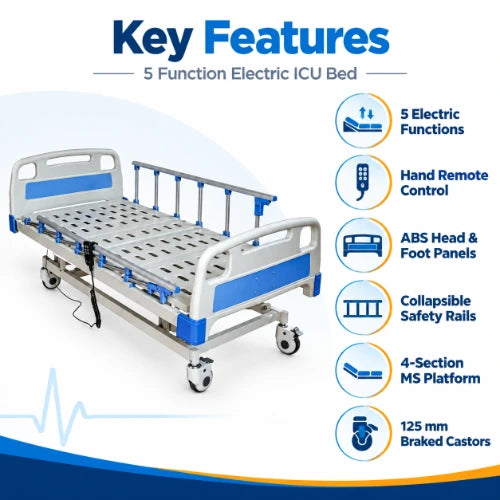

Key Features of the 5 Function Electric ICU Bed
Four-Section Hospital Bed Platform
The bed uses a four-section perforated mild-steel platform. Because the platform is divided, different sections can change position.
ABS Head and Foot Panels
Moulded ABS panels form the head and foot ends. In addition, their smooth surfaces can make routine wiping easier.
Collapsible Safety Railings
The side railings can lower when access is needed and rise again when appropriate. However, caregivers should always use railings according to the patient's needs and the bed instructions.
125 mm Braked Castors
The bed uses 125 mm wheels, also called castors. After moving the bed, the brakes help keep it in position.
Telescopic IV Rod
The listed configuration includes a telescopic IV rod with two location options. IV means intravenous.
Powder-Coated Mild-Steel Frame
Mild steel forms the bed frame. In addition, an epoxy powder coating protects the metal surface.
How the Electric ICU Bed with 5 Functions Helps with Positioning
Different people may need different resting positions during the day. For this reason, having several electric adjustments can make regular position changes more practical for caregivers.
For example, the backrest can create a more upright position when appropriate. Meanwhile, the knee-rest section changes the position of the legs.
The Hi-Lo function changes the full bed height. Therefore, caregivers can select a height that suits the care task before returning the bed to an appropriate patient position.
However, the bed itself does not treat a medical condition. Healthcare professionals should guide specialised positions when the person's condition requires clinical judgement.
Trendelenburg and Reverse Trendelenburg Explained
These two terms can sound confusing when a family first looks at an ICU-style bed.
Trendelenburg means the whole bed tilts so the head end is lower than the feet.
Reverse Trendelenburg means the opposite. In this position, the head end is higher than the feet.
However, these are clinical positioning options rather than normal comfort settings for every user. Therefore, follow healthcare guidance when these positions form part of the person's care.
5 Function Electric Hospital Bed Safety Features
Safety becomes especially important when a person has limited movement or depends on caregivers for transfers.
- Collapsible side railings provide a physical boundary when raised.
- Braked castors help secure the bed after it has been moved.
- Detachable ABS head and foot panels allow easier access when appropriate.
- The hand remote keeps the main electric adjustments in one control.
- The IV rod provides a mounting option for suitable intravenous care.
However, safety rails do not replace patient supervision. In addition, caregivers should check that clothing, bedding and body parts stay clear while the bed changes position.

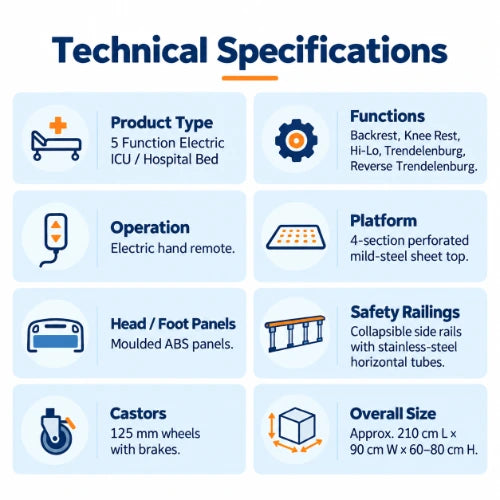

Electric ICU Bed with 5 Functions Specifications
| Specification | Current Product Information |
|---|---|
| Product Type | 5 Function Electric ICU / Hospital Bed |
| Functions | Backrest, knee rest, Trendelenburg, reverse Trendelenburg and Hi-Lo |
| Operation | Electric adjustment through hand remote |
| Platform | 4-section perforated mild-steel sheet top |
| Frame | Rectangular mild-steel tube structure |
| Head / Foot Panels | Moulded ABS panels |
| Safety Railings | Collapsible side railings with stainless-steel horizontal tubes |
| IV Rod | Telescopic design with two listed position options |
| Castors | 125 mm wheels with brakes |
| Overall Size | Approximately 210 cm L × 90 cm W × 60–80 cm H |
| Finish | Epoxy powder coated |
| Mattress | 4-section mattress listed as optional / extra |
| Country of Origin | India, as currently listed |
Using a 5 Function Electric ICU Bed at Home
For many families, moving from a normal bed to an ICU-style bed is a major change. Therefore, it helps to understand the setup before the patient starts using it.
- Place the bed on a stable, suitable floor.
- Make sure there is enough room around the bed for caregiver access.
- Lock the castor brakes once the bed reaches the required position.
- Learn each remote-control function before regular use.
- Keep hands, feet, clothing and bedding away from moving sections.
- Use the side railings according to the person's safety needs.
- Follow professional guidance for specialised tilt positions.
In addition, confirm that the room has suitable electrical access. Before delivery, ask Meddey about installation requirements and the exact supplied accessories.
Can an Electric Hospital Bed Help with Pressure-Sore Care?
Regular repositioning forms part of pressure-injury prevention plans for many people who spend long periods in bed.
Because this bed provides several positioning options, it may make planned position changes easier for caregivers. However, the bed itself cannot guarantee that bed sores will not develop.
Pressure-sore prevention may also involve a suitable mattress, regular skin checks, repositioning, nutrition and other care measures. Therefore, people at high risk should follow professional medical or nursing guidance.
5 Function Electric ICU Bed for Hospitals and Healthcare Facilities
This page mainly explains the product for families arranging advanced home care. However, the same electric positioning functions are also relevant in hospitals, ICUs, nursing facilities and rehabilitation centres.
Healthcare teams can use the backrest, knee-rest, Hi-Lo and whole-bed tilt functions according to the person's clinical needs.
Before institutional purchase, confirm the exact load rating, electrical specifications, warranty, mattress configuration and installation requirements with Meddey.
Frequently Asked Questions About the Electric ICU Bed with 5 Functions
What are the 5 functions of this electric ICU bed?
The five listed functions are backrest adjustment, knee-rest adjustment, Hi-Lo height adjustment, Trendelenburg and reverse Trendelenburg.
What does Hi-Lo mean on a hospital bed?
Hi-Lo means raising or lowering the full bed height. Therefore, the complete sleeping platform moves higher or lower.
What does ABS panel mean?
ABS is a strong moulded plastic. This bed uses ABS head and foot panels.
Does this 5 function hospital bed use a remote?
Yes. The listed five electric functions operate through a hand remote.
Does this electric ICU bed have safety railings?
Yes. The current configuration lists collapsible side railings. Caregivers should use them according to the person's safety needs.
Is a mattress included with the ICU bed?
The current product information lists a four-section mattress as an optional extra. Therefore, confirm mattress pricing before ordering.
Can this electric ICU bed be used at home?
It may suit advanced home-care situations where frequent positioning is required. However, the room, electrical setup and caregiver support should be appropriate for this type of equipment.
Does this hospital bed prevent bed sores?
No bed can guarantee prevention. However, electric positioning may support a wider pressure-care plan by making planned position changes easier when appropriate.
Do you provide delivery and installation?
Contact Meddey to confirm delivery and installation availability for your location before ordering.
Electric ICU Bed with 5 Functions for Advanced Patient Care
If you are choosing a hospital bed for a family member, this model combines five electric positioning functions, ABS panels, collapsible safety railings, braked castors and a four-section bed platform.
Before ordering, confirm the mattress requirement, exact accessories, warranty, load rating and installation details so the supplied bed matches the person's care needs.
