Half HP Medical Suction Machine with Dual Glass Jars
Choose options

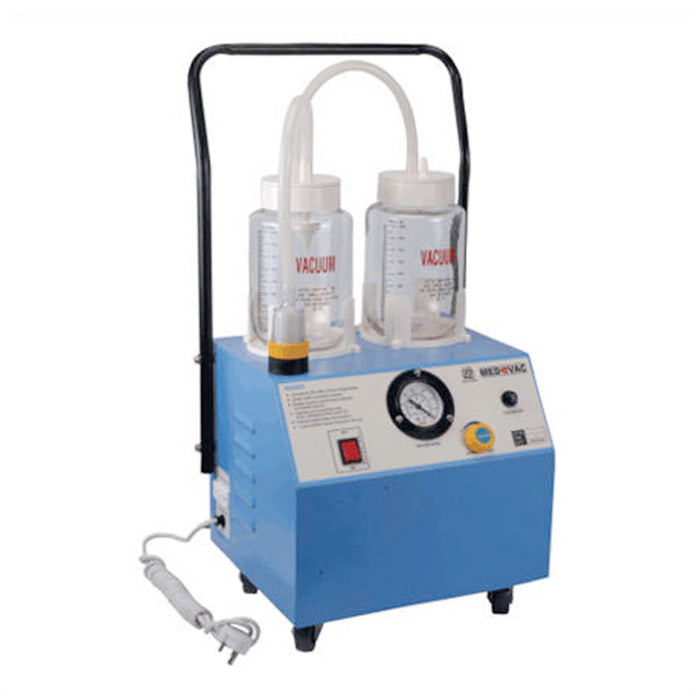

Half HP Medical Suction Machine with Dual 1.5 L Glass Jars
The Half HP Suction Machine is a high-vacuum medical suction apparatus designed for hospitals, clinics, nursing homes, procedure rooms and other professional healthcare environments. Its 1/2 HP electric motor delivers dependable suction for the controlled removal of fluids and secretions during suitable clinical and MTP procedures.
The unit provides vacuum up to -700 mmHg and free-air displacement of approximately 30–35 litres per minute. Two 1.5-litre glass collection jars, individual overflow safety protection, a bacterial filter and a clearly visible vacuum gauge support organised fluid collection and controlled operation.
Key Performance Highlights
Supports stable suction performance for professional medical applications.
Provides high-vacuum capability for suitable clinical suction procedures.
Offers a combined collection capacity of up to three litres.
Delivers practical free-air displacement for clinical fluid management.
Designed for Professional Healthcare Environments
This electric suction machine can support trained healthcare professionals where controlled high-vacuum suction and dependable collection capacity are required. Depending on the applicable clinical protocol and authorised use, it may be used in:
- Hospitals and nursing homes: for routine clinical suction requirements.
- Operation and procedure rooms: for fluid and secretion management during suitable procedures.
- Gynaecology and MTP facilities: when used by qualified professionals under the applicable protocol.
- Emergency and recovery areas: as part of an appropriately equipped medical setup.
- Clinics and day-care centres: where a high-vacuum, dual-jar suction apparatus is required.
Features and Clinical Benefits
- Powerful electric motor: The 1/2 HP motor supports consistent suction for demanding professional environments.
- Two collection jars: Dual 1.5-litre glass jars provide useful collection capacity and support organised workflow.
- Overflow protection: An overflow safety device helps reduce the risk of collected liquid entering the suction system.
- Visible vacuum monitoring: The 76 mm gauge allows the operator to observe the generated vacuum level.
- Bacterial filtration: A top-mounted bacterial filter supports hygienic system operation when maintained correctly.
- Non-collapsible tubing: Designed to help maintain the suction pathway during operation.
- Low-noise performance: The specified noise level of 50 dB ±3 dB helps support a more controlled clinical environment.
- Mobile construction: Four anti-static castors help healthcare staff reposition the unit within the facility.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Electric medical suction machine |
| Application | MTP and suitable clinical suction procedures |
| Motor Capacity | 1/2 HP electric motor |
| Maximum Vacuum | Up to -700 mmHg |
| Free-Air Displacement | 30–35 litres per minute |
| Collection Jars | Two 1.5-litre glass jars |
| Overflow Protection | Overflow safety device provided |
| Vacuum Gauge | 76 mm |
| Noise Level | 50 dB ±3 dB |
| Power Requirement | 220–230 V AC, 50 Hz, single phase |
| Top Material | Stainless steel |
| Frame | PC frame |
| Tubing | Non-collapsible suction tubing |
| Filter | Top-mounted bacterial filter |
| Mobility | Four anti-static castors |
| Country of Origin | India |
Frequently Asked Questions
What is a half HP suction machine used for?
A half HP suction machine generates negative pressure for the controlled removal and collection of fluids or secretions during suitable medical procedures. This model is intended for professional healthcare use.
What is the maximum vacuum level?
The machine can generate vacuum up to -700 mmHg.
What is its airflow capacity?
Its specified free-air displacement is approximately 30–35 litres per minute.
How many collection jars are supplied?
The suction machine includes two 1.5-litre glass jars, providing a combined nominal collection capacity of three litres.
Do the jars have overflow protection?
Yes. The jars are supplied with an overflow safety device to help prevent collected liquid from entering the suction mechanism.
Does the machine include a bacterial filter?
Yes. A bacterial filter is fitted at the top of the unit. It must be inspected and replaced according to the manufacturer’s maintenance instructions.
What electrical supply does it require?
It operates on a 220–230 V, 50 Hz, single-phase electrical supply.
Who should operate this medical suction machine?
It should be installed and operated only by trained healthcare personnel in accordance with the product manual, facility protocol and applicable medical guidance.
Important Medical-Use Note
This is professional medical equipment and should not be operated without suitable training. Suction pressure, accessories, cleaning, disinfection and procedure selection must be determined by qualified healthcare personnel. Product appearance and supplied accessories may vary; verify the final configuration before purchase.
Country of Origin: India
Manufacturer/Importer/Marketed By: Meddey Technologies Pvt. Ltd., C-75, First Floor, DDA Sheds, Industrial Area, Phase 1, Okhla, New Delhi – 110020. Phone: +91 8586-012345.
