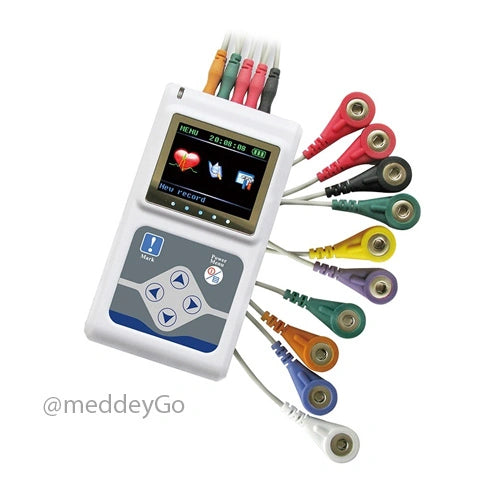

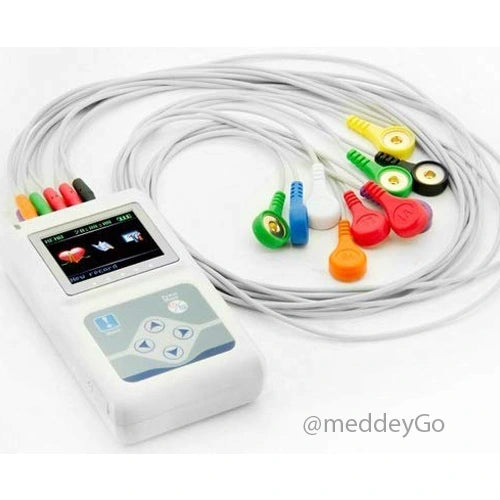

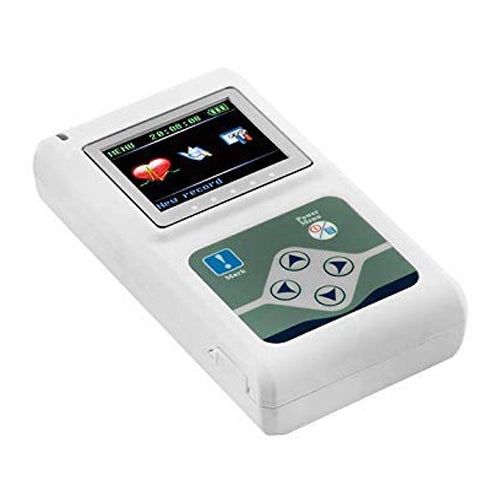

Portable Holter ECG System 12 Channel 5000H

Product description

Experience dependable and efficient ECG monitoring with our advanced Holter ECG System. Equipped with anti-jamming technology and a real-time clock, it ensures accurate and secure data collection for comprehensive 24-hour Decg recordings.

Features:

• With Advance Design And Technology. The Recorder Can Work Stably, Dependable And Durably.
• Be Provided With The Capability Of Anti-jamming And Aseismatic.
• Small Volume With Olled Screen. The Resolution Is 160#128.
• Be provided with functionsof waveform preview, record review and event marketing.
• Accurate record of the start time of the data sampled owing to the real time clock of itself.
• Avoid damage owing to the repeating inserting and pulling out by using the inbuilt TFcard to storage the data.
• The maximum capability can be 2gb , so the original data can be saved perfectly by no compression.
• the average review time of single case can be less than 40 seconds by using interface of USB 2.0.
• Record waveform details inextenso by the design of high precision sampling frequency.
• Record the state of pacemaker exactly by higher sampling frequency.
• International standard of 12 leads , record 24-hour Drcg with the same standard of the ECG.

Standard:

• Number of channel : 12 channel
• Sampling Accuracy : 12bit
• Record Time : 24h
• Power : 2 Aa size Battaries
• Interface : Usb 2.0
• Scale Voltage : 1 mv+5%
• Standard Sensitivity : 10mm\mv+5%
• Noise level : <30uv
• Cmrr : >60db
• Low frequency characteritics Time constanst >3.2s
• Scan speed : 25mm\s+5%
• Enduring polarization voltage : +300mv Dc polarization voltage, sensitivity shifts<+10%
• Least measuring signal : 50 mvp-p
• Product safety type : Type B (internally powered)

Physical Characteristic:

• Dimensions : 111(l)*60(w)*25(h)MM
• Weight : About 105g ( without battery)
