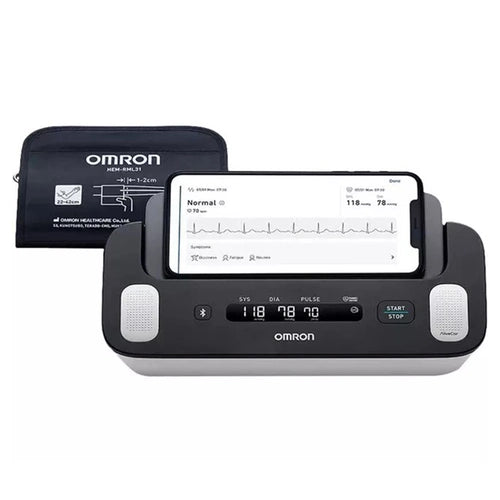

Omron HEM-7530T Blood Pressure Monitor with ECG, AFib & Bluetooth
Double-tap to zoom · drag to pan · swipe to browse
Omron HEM-7530T Blood Pressure Monitor with ECG, AFib & Bluetooth
Customer reviews
Choose options
- HEM-7530T single-lead ECG: records one electrical view of the heart rhythm for home screening.
- 12-lead ECG: records several electrical views and gives healthcare professionals more detailed clinical information.
- Blood pressure measurement only
- ECG recording only
- HEM-7530T single-lead ECG: records one electrical view of the heart rhythm for home screening.
- 12-lead ECG: records several electrical views and gives healthcare professionals more detailed clinical information.
- Blood pressure measurement only
- ECG recording only
Full product description
If you or a family member regularly checks both blood pressure and heart rhythm, the Omron HEM-7530T blood pressure monitor combines an automatic upper-arm BP monitor and a single-lead ECG recorder in one device.
In simple words, you can use it for a normal blood pressure check, record an ECG, or use both functions together. Therefore, you do not need to record an ECG every time you only want to check your BP.
The ECG works with the OMRON Connect app on a compatible smartphone. It can provide supported screening results such as Possible AFib, bradycardia and tachycardia.
Most importantly, these ECG results are screening information rather than a final medical diagnosis. Repeated unusual results or concerning symptoms should be discussed with a healthcare professional.
Omron HEM-7530T Blood Pressure Monitor with ECG for Home Use
The HEM-7530T measures blood pressure from the upper arm. It displays systolic pressure, diastolic pressure and pulse.
Systolic means the upper BP number, while diastolic means the lower BP number. Meanwhile, pulse means the number of heartbeats per minute.
Blood pressure uses the unit mmHg. This is simply the standard unit used for BP readings.
In addition, the device can record a single-lead ECG. This provides one electrical view of the heart rhythm during a short recording.
Omron HEM-7530T Terms Explained in Simple Words

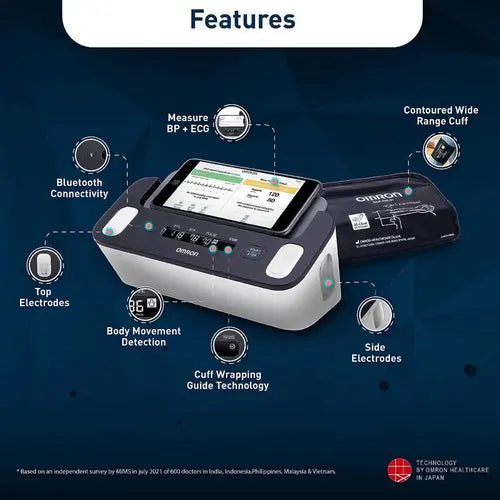

Key Features of the Omron HEM-7530T Blood Pressure Monitor
2-in-1 Blood Pressure Monitor with ECG
The same device can take upper-arm blood pressure readings and record a single-lead ECG. Therefore, users can keep two useful types of home-monitoring information together.
30-Second Single-Lead ECG
The default ECG recording lasts about 30 seconds. During recording, the ECG waveform appears through the compatible smartphone app.
AFib and Heart-Rhythm Screening
Supported app analysis can report Possible AFib, Bradycardia, Tachycardia, Normal, Unreadable or Unclassified results.
Bluetooth BP Monitor with OMRON Connect
Bluetooth allows compatible information to transfer to OMRON Connect. As a result, users can keep digital records more conveniently.
90 Blood Pressure Readings
The monitor stores up to 90 BP readings internally. However, earlier stored readings are reviewed through OMRON Connect after transfer rather than directly on the monitor.
22–42 cm Upper-Arm Cuff
The included cuff fits upper-arm circumferences of approximately 22–42 cm. Therefore, measure your arm first if you are unsure about fit.
How the Omron HEM-7530T ECG Function Works
Before using the ECG function, pair the monitor with a compatible smartphone and the OMRON Connect app.
Next, place the smartphone on the monitor's built-in phone stand. Then rest your thumbs on the top electrodes and at least two fingers on each side electrode.
Once your fingers make suitable contact, the ECG recording begins. During the recording, remain still and keep your arms relaxed.
The app normally records for about 30 seconds and then displays a supported analysis result.
AFib Screening on the Omron HEM-7530T ECG Monitor
After a suitable ECG recording, the app may show Possible AFib.
This means the recorded ECG pattern may be consistent with atrial fibrillation. However, OMRON specifically states that this result is not a diagnosis.
Therefore, if Possible AFib repeatedly appears, share the result with a doctor or another qualified healthcare professional.
Likewise, the app may show bradycardia or tachycardia. These labels describe heart-rate patterns, but they do not tell you why the heart rate changed.
Single-Lead ECG vs Hospital 12-Lead ECG
A single-lead ECG and a clinical 12-lead ECG are not the same test.
- HEM-7530T single-lead ECG: records one electrical view of the heart rhythm for home screening.
- 12-lead ECG: records several electrical views and gives healthcare professionals more detailed clinical information.
Because of this difference, the HEM-7530T should not be described as a replacement for a hospital ECG machine.
Can I Check Only Blood Pressure with the HEM-7530T?
Yes. You can use the device as a normal upper-arm BP monitor without recording an ECG.
In fact, the HEM-7530T supports three practical ways of using the device:
- Blood pressure measurement only
- ECG recording only
- Blood pressure measurement and ECG recording together
Therefore, families can use the extra ECG feature when needed rather than during every routine BP check.
How to Use the Omron HEM-7530T Blood Pressure Monitor Correctly
- First, avoid exercise, smoking, alcohol, caffeine and eating for around 30 minutes before measuring BP where practical.
- Rest quietly for about five minutes before starting.
- Sit with your back supported.
- Keep both feet flat on the floor and do not cross your legs.
- Wrap the cuff correctly around your upper arm.
- Support your arm so the cuff remains around heart level.
- Stay still and avoid talking during measurement.
- Review your SYS, DIA and pulse values after the measurement.
- Finally, transfer your readings to OMRON Connect when digital tracking is required.
Omron HEM-7530T Blood Pressure Monitor Specifications
| Specification | Verified Information |
|---|---|
| Brand | OMRON |
| Model | HEM-7530T / OMRON Complete |
| Product Type | Automatic upper-arm blood pressure monitor with single-lead ECG |
| BP Measurement Method | Oscillometric |
| ECG Type | Single-lead ECG |
| Default ECG Duration | 30 seconds |
| ECG Screening Results | Possible AFib, Bradycardia, Tachycardia, Normal, Unreadable or Unclassified through supported app analysis |
| Systolic BP Range | 60–260 mmHg |
| Diastolic BP Range | 40–215 mmHg |
| Pulse Range | 40–180 beats/min |
| Pressure Accuracy | ±3 mmHg |
| Pulse Accuracy | ±5% of displayed reading |
| Included Cuff Range | Approx. 22–42 cm upper-arm circumference |
| BP Memory | Up to 90 blood pressure readings |
| Connectivity | Bluetooth Low Energy |
| App | OMRON Connect |
| Power | 4 × AA 1.5V alkaline batteries |
| Approx. Battery Life | Approximately 300 measurements |
| Approx. Monitor Weight | 550 g without batteries |
| Approx. Monitor Dimensions | 232 × 98 × 123 mm |
What Comes with the Omron Complete HEM-7530T?
- OMRON HEM-7530T blood pressure monitor + ECG unit
- Wide-range upper-arm cuff for approximately 22–42 cm arms
- Storage case
- 4 × AA batteries
- Instruction manual
- Warranty card
Package contents may vary slightly by regional stock. Therefore, confirm the current Meddey package if a particular accessory is important before ordering.
Important Safety for the Omron HEM-7530T ECG Function
- Do not use an ECG result as a final medical diagnosis.
- Do not record an ECG if you have a cardiac pacemaker, implanted cardioverter defibrillator or another implanted electronic device.
- Remain still while recording the ECG because movement can add noise to the tracing.
- Keep the ECG electrodes clean and follow OMRON's cleaning instructions.
- If you are pregnant or have a medical condition that may affect BP measurement, ask your healthcare professional for suitable monitoring advice.
Omron HEM-7530T for Families and Healthcare Professionals
For most households, the main advantage is convenience. One device can provide routine upper-arm BP checks and a short ECG recording.
In addition, OMRON Connect can help organise compatible readings between healthcare visits. This may make it easier to show a doctor recorded information when discussing symptoms or unusual readings.
Meanwhile, clinics and healthcare professionals may find home records useful as additional information during follow-up.
However, the device remains a home monitoring and screening tool. Professional clinical assessment remains important when symptoms or repeated unusual readings occur.
Frequently Asked Questions About Omron HEM-7530T
Can the Omron HEM-7530T measure BP and ECG together?
Yes. The device can take a blood-pressure measurement while also recording a single-lead ECG.
Can I use the Omron HEM-7530T only for blood pressure?
Yes. You can take BP measurements without using the ECG function and without pairing the monitor to a smartphone.
What is a single-lead ECG?
It records one electrical view of the heart rhythm. It provides useful home screening information but is not the same as a clinical 12-lead ECG.
Does the HEM-7530T diagnose AFib?
No. The OMRON Connect app can show a Possible AFib result, but OMRON states that this is not a diagnosis.
What do bradycardia and tachycardia mean?
Bradycardia means a slower heart rate, while tachycardia means a faster heart rate. The app can identify these patterns in supported ECG recordings, but it does not diagnose their cause.
Do I need a smartphone to check blood pressure?
No. Normal BP measurement works directly on the monitor. However, the ECG function requires a compatible smartphone and OMRON Connect.
How long does the ECG recording take?
The default ECG recording lasts approximately 30 seconds.
What arm size does the HEM-7530T cuff fit?
The included wide-range cuff fits an upper-arm circumference of approximately 22–42 cm.
How many BP readings does the monitor store?
The monitor stores up to 90 blood-pressure readings internally. Previous stored readings can then be transferred to and reviewed through OMRON Connect.
Can someone with a pacemaker use the ECG feature?
OMRON instructs users not to record an ECG with a cardiac pacemaker, implanted cardioverter defibrillator or another implanted electronic device.
Does the HEM-7530T replace a hospital ECG?
No. It records a single-lead ECG for home screening. A healthcare professional may still recommend a clinical ECG or other tests when more detailed assessment is needed.
Omron HEM-7530T Blood Pressure Monitor for BP + ECG Tracking
The HEM-7530T combines routine upper-arm BP measurement with a 30-second single-lead ECG, Bluetooth and OMRON Connect support.
For families who want both BP and heart-rhythm information at home, it provides these functions in one device while keeping professional medical interpretation important.
