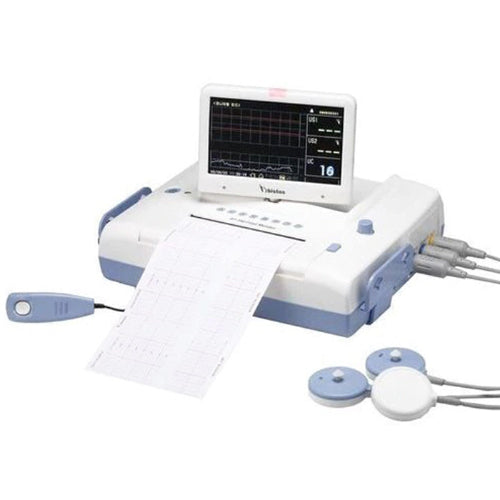

Bistos BT350 Fetal Monitor CTG Machine with 7 Inch Screen

The Bistos BT350 Fetal Monitor CTG Machine is a professional fetal monitoring system designed to help healthcare professionals observe fetal heart rate, uterine contractions and fetal movement during pregnancy. It uses Doppler ultrasound technology to detect fetal heart activity and displays important monitoring information for clinical assessment. Therefore, it is suitable for maternity hospitals, obstetric departments, nursing homes and maternity clinics that require dependable fetal surveillance.

In addition, the BT350 combines fetal heart rate monitoring with uterine contraction measurement and CTG analysis. The system can print FHR, UC and fetal movement information on thermal paper while also displaying monitoring data on the screen. As a result, clinicians can review both live information and recorded trends during antenatal monitoring or non-stress testing.

Advanced Fetal Heart Rate Monitoring

The BT350 uses a Doppler probe with 9 crystal sensors to help capture fetal heart rate effectively. The probe detects signals reflected from the fetal heart and converts them into useful FHR information. Moreover, the waterproof probe design supports flexible clinical use and is rated for water-related monitoring applications.

The monitor also provides audible fetal heart information, helping healthcare professionals follow fetal heart activity during an examination. Therefore, the BT350 supports both visual and audio assessment during routine fetal monitoring.

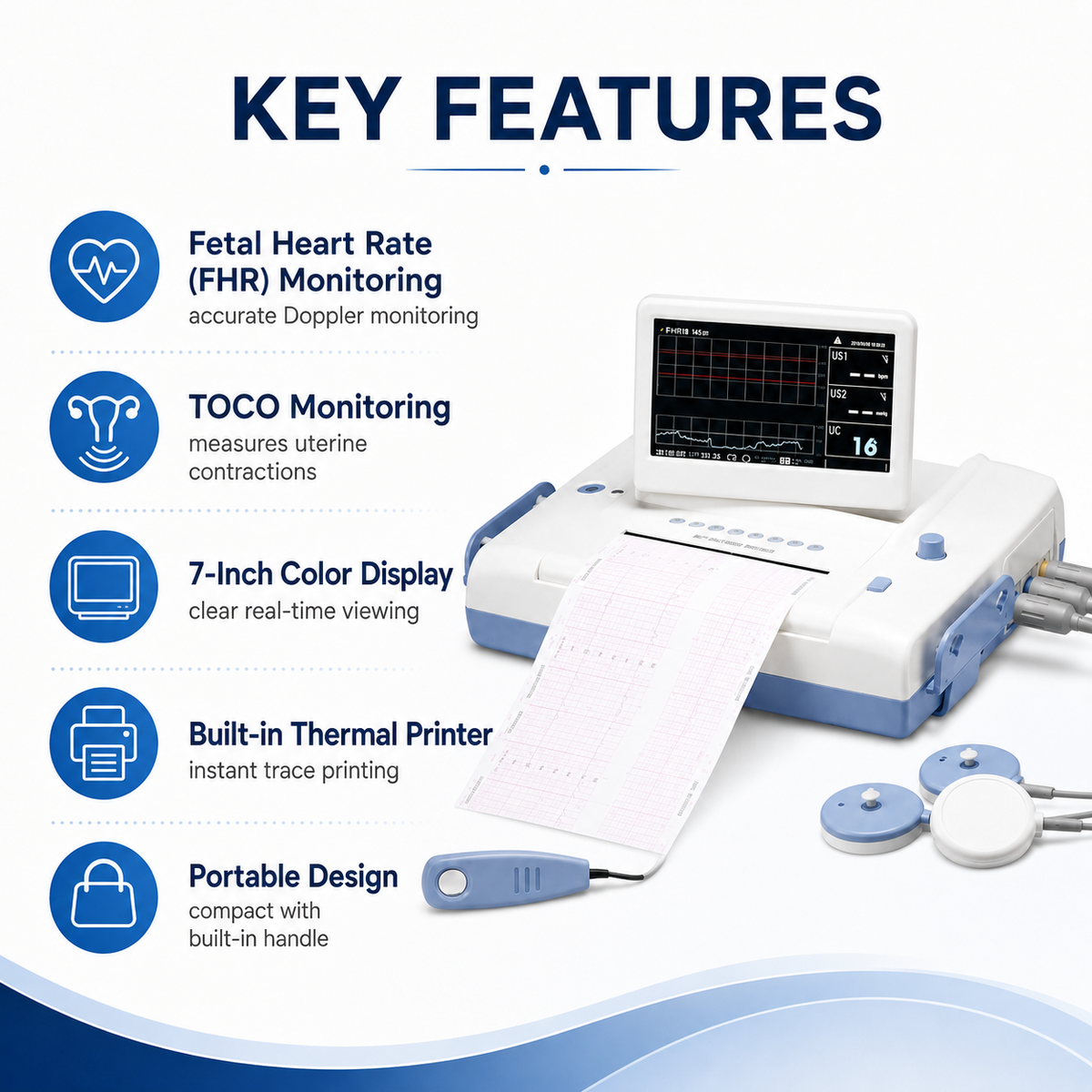

Key Features of Bistos BT350

• FHR Monitoring: Measures and displays fetal heart rate using Doppler ultrasound technology.
• Uterine Contraction Monitoring: Measures uterine activity through a pressure sensor.
• CTG Analysis: Calculates baseline, acceleration, deceleration and fetal movement data.
• 9-Crystal Doppler Probe: Helps improve fetal heart signal detection.
• Waterproof Probe: Designed with IPX8 waterproof protection for greater clinical flexibility.
• Cross Channel Verification: Helps reduce confusion between fetal heart rate channels during twin monitoring.
• USB Data Export: Allows FHR and uterine contraction trend data to be saved to a USB memory device.
• Portable Design: Built-in handle supports easier movement between clinical areas.

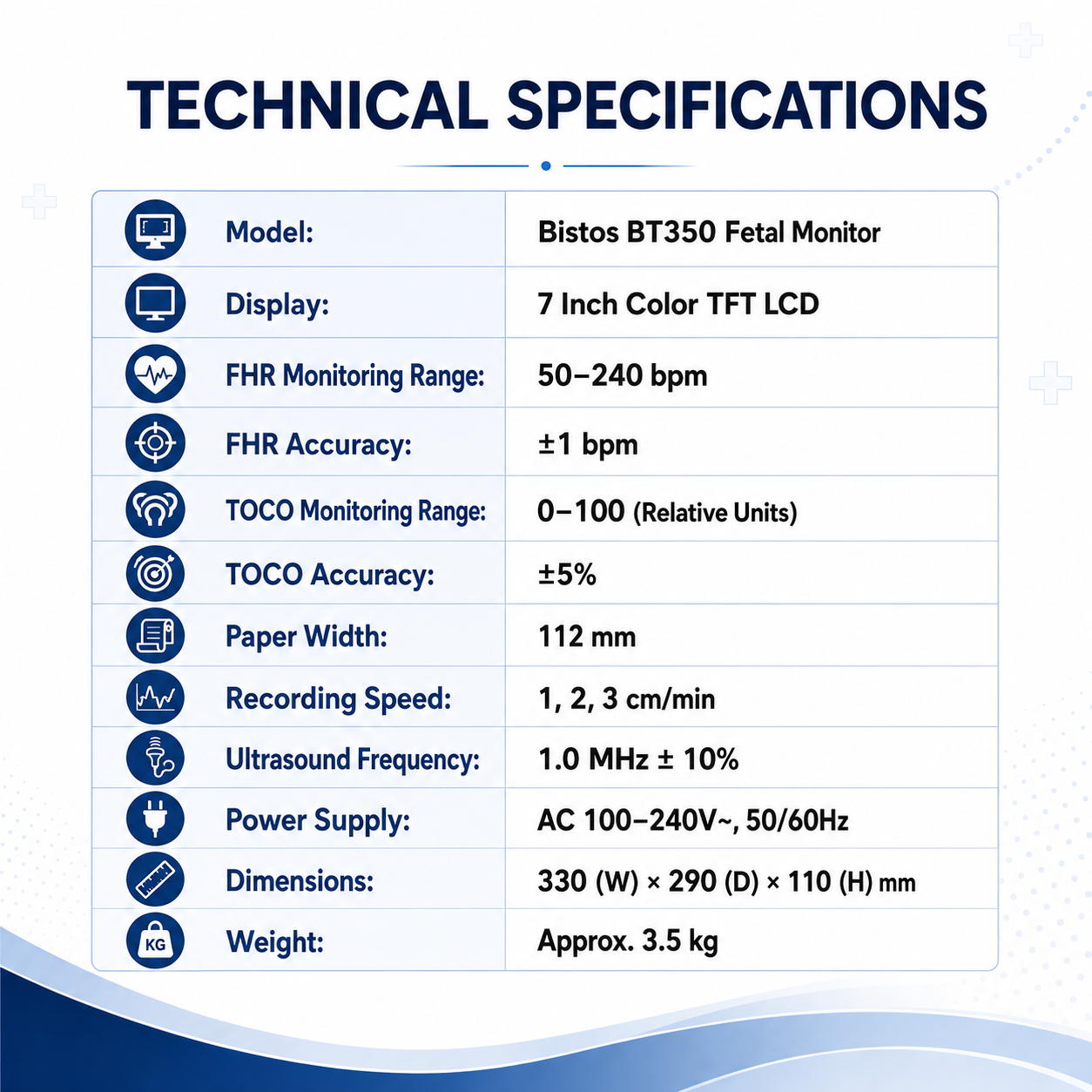

Technical Specifications

CTG Analysis for Better Clinical Review

One of the important features of the BT350 is built-in CTG analysis. The system can calculate clinically useful information such as fetal heart rate baseline, accelerations, decelerations and fetal movement. Therefore, clinicians receive organized monitoring data that can support professional interpretation during fetal assessment.

Moreover, stored information can be reviewed after monitoring. This helps healthcare professionals examine fetal heart patterns over time instead of relying only on a live reading. The zoom-in function can also enlarge the FHR graph scale, making detailed trend observation easier.

Cross Channel Verification for Twin Monitoring

When monitoring twins, accurately separating two fetal heart rate signals is important. The BT350 includes Cross Channel Verification, which helps identify situations where the same fetal heart rate may be detected on both channels. As a result, the system can provide an alert and support more careful interpretation during twin fetal monitoring.

In addition, the DOP2 offset function can display the second fetal heart rate approximately 20 bpm higher on the trend display. Therefore, clinicians can distinguish the two FHR traces more easily when reviewing twin monitoring data.

Central Monitoring & Data Management

The Bistos BT350 supports integration with BCM-350 Central Monitoring Software. Therefore, multiple fetal monitors can be managed from a central monitoring environment. The system supports connection of multiple monitors through suitable wired or optional wireless communication.

Furthermore, FHR and uterine contraction trend information can be exported to a USB memory device. This allows healthcare facilities to manage monitoring data more efficiently and supports organized record keeping.

Suitable Applications

• Obstetrics and gynecology departments
• Maternity hospitals and nursing homes
• Antenatal fetal monitoring
• Non-stress testing procedures
• Labour and delivery monitoring areas
• Twin fetal heart monitoring when appropriately configured
• Clinics requiring portable fetal monitoring equipment

Why Choose Bistos BT350 Fetal Monitor?

The BT350 combines fetal heart monitoring, uterine contraction measurement, fetal movement recording and CTG analysis in one professional system. In addition, its waterproof Doppler probe, USB data support and central monitoring capability make it suitable for different clinical workflows.

The compact body and integrated carrying handle also support portability between rooms. Moreover, an optional rechargeable Li-ion battery can allow operation without AC power for up to approximately three hours, which can be useful when mobility is important.

Frequently Asked Questions

What does the Bistos BT350 monitor?

The BT350 monitors fetal heart rate, uterine contractions and fetal movement, providing important information during fetal assessment.

Does the BT350 provide CTG analysis?

Yes. It can analyse information such as baseline fetal heart rate, acceleration, deceleration and fetal movement.

Is the Doppler probe waterproof?

Yes. The product specification lists the probe as waterproof with IPX8 protection.

Can monitoring data be exported?

Yes. FHR and uterine contraction trend data can be exported to a compatible USB memory device for further management.

Can the BT350 connect to central monitoring software?

Yes. It supports BCM-350 Central Monitoring Software and can work with multiple fetal monitors in a suitable central monitoring setup.
