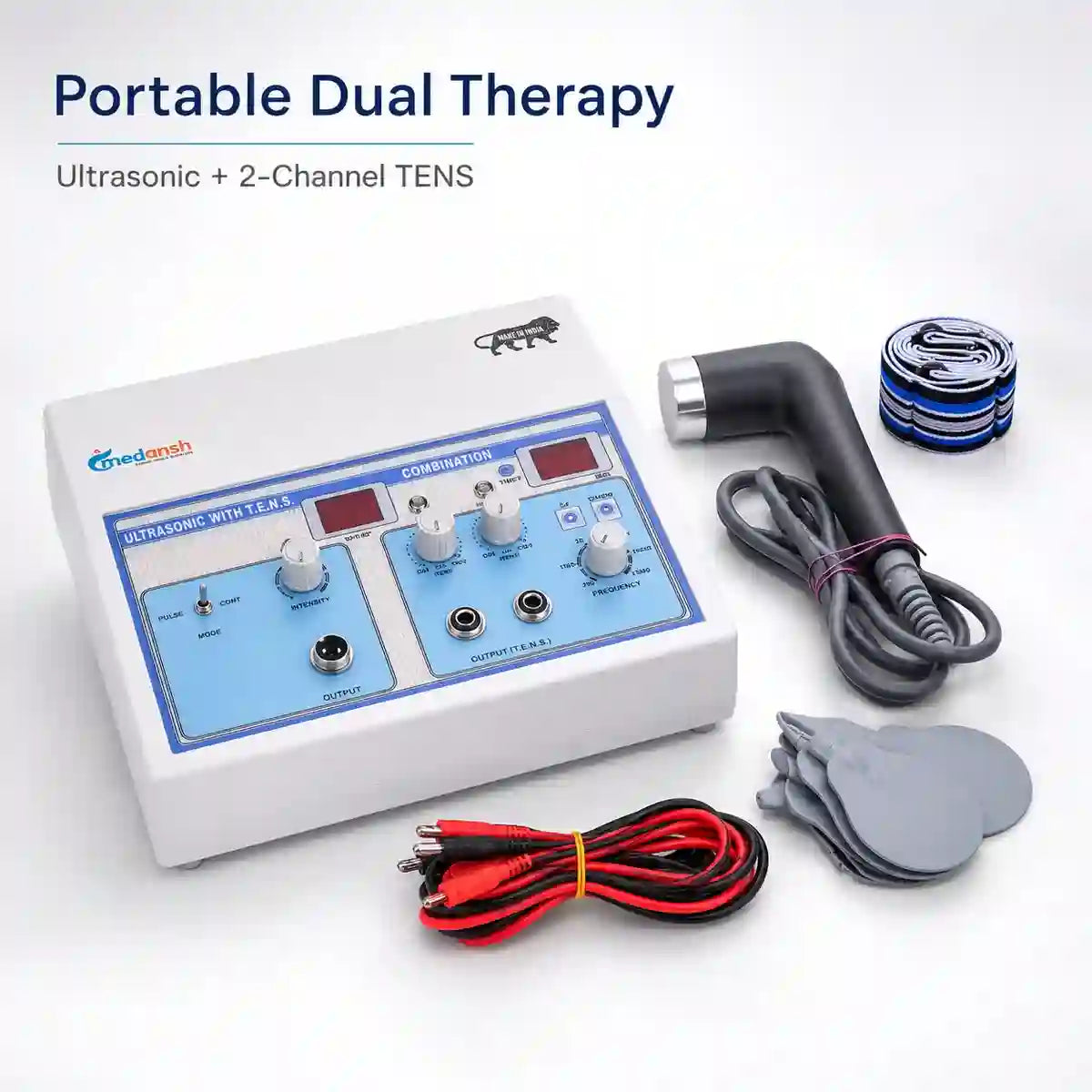

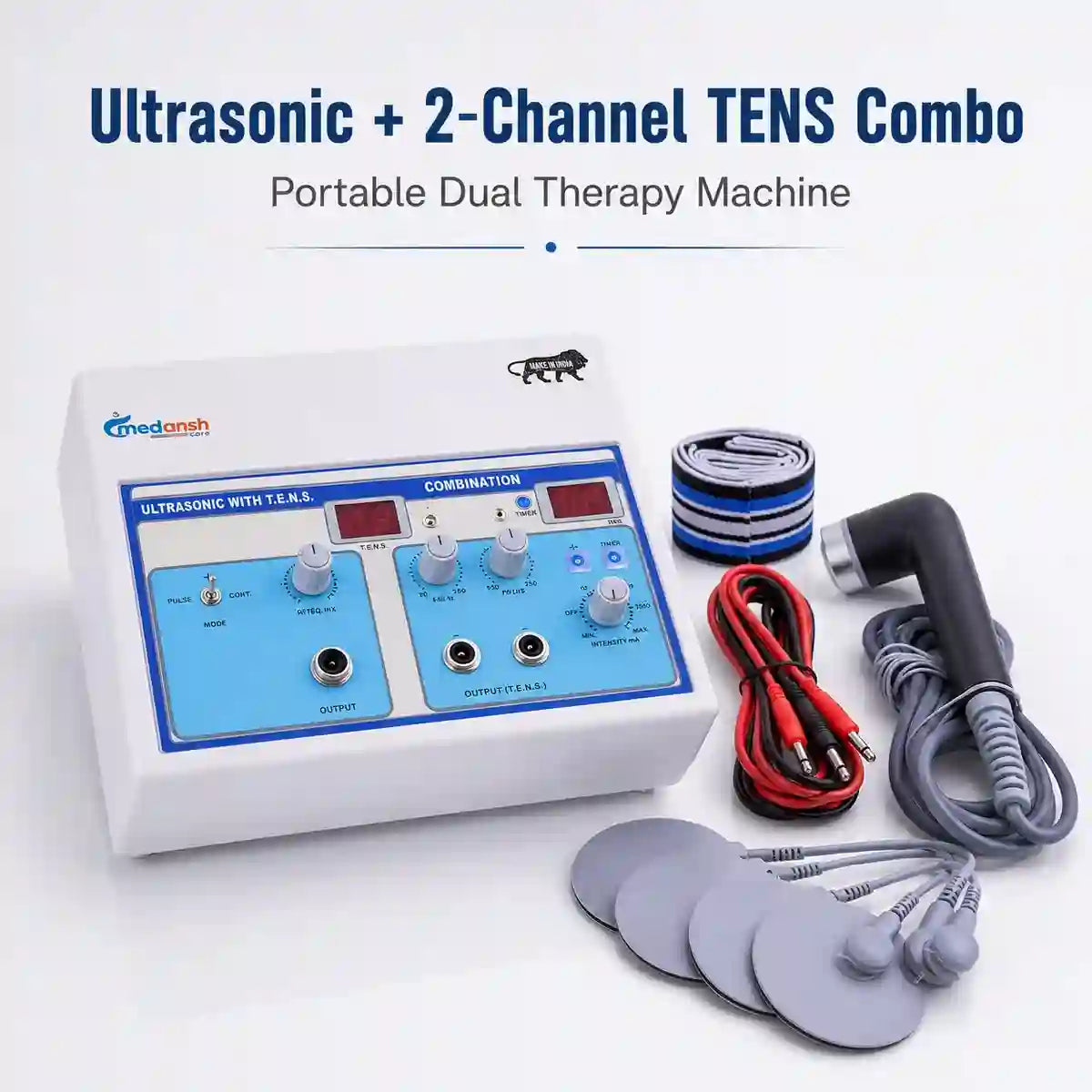

Ultrasonic + 2-Channel TENS Combo – Portable Dual Therapy Machine

Ultrasonic + 2-Channel TENS Combo – Portable Dual Therapy for Pain & Healing

The Medansh Ultrasonic with 2-Channel TENS Combination Machine brings professional-grade dual therapy into a compact, portable unit ideal for home use and small physiotherapy setups. Ultrasonic therapy at 1MHz promotes deep tissue healing and collagen repair, while the 2-channel TENS provides targeted pain relief — giving you two of the most commonly prescribed physiotherapy modalities in one affordable device.

Why Combine Ultrasound and TENS

Ultrasound and TENS act on pain through two different mechanisms, which is why physiotherapists often use them together rather than relying on just one. Ultrasound works at the tissue level: the sound waves create gentle mechanical vibration that generates heat, encouraging blood flow and supporting the body's natural tissue-repair process. TENS works at the nerve level: mild electrical pulses interfere with pain signals travelling to the brain and can prompt the release of the body's own natural pain-relieving endorphins. Using both in the same session addresses pain and recovery from two angles instead of one, which is why combo units like this are popular for home and small-clinic use.

Perfect For

• Home physiotherapy patients: Get ultrasound and TENS treatment at home between clinic visits — useful for anyone managing an ongoing chronic pain condition who doesn't want to travel for every session.
• New physiotherapy clinics: One device covering two core modalities means less equipment to buy and manage compared with running separate ultrasound and TENS units.
• Travelling physiotherapists: A single portable combo unit for practitioners doing home visits, so both modalities fit in one bag instead of two.
• Sports trainers: On-field or trackside injury support, with ultrasound for tissue-level care and TENS for pain control in the same kit.

Ultrasonic Therapy Benefits

• Supports increased local blood circulation at the treatment site
• Helps tendon and ligament healing by supporting fibroblast activity in the tissue
• Used to help soften scar tissue and adhesions from older injuries
• Supports management of chronic joint inflammation (shoulder, knee, ankle)
• Improves tissue extensibility ahead of stretching and manual therapy

2-Channel TENS Benefits

• Helps block pain signals through the gate-control mechanism
• Stimulates the body's natural endorphin release for drug-free pain relief
• Treats two pain areas at the same time (for example, back and knee together)
• Adjustable from a gentle tingling sensation up to a stronger muscle contraction

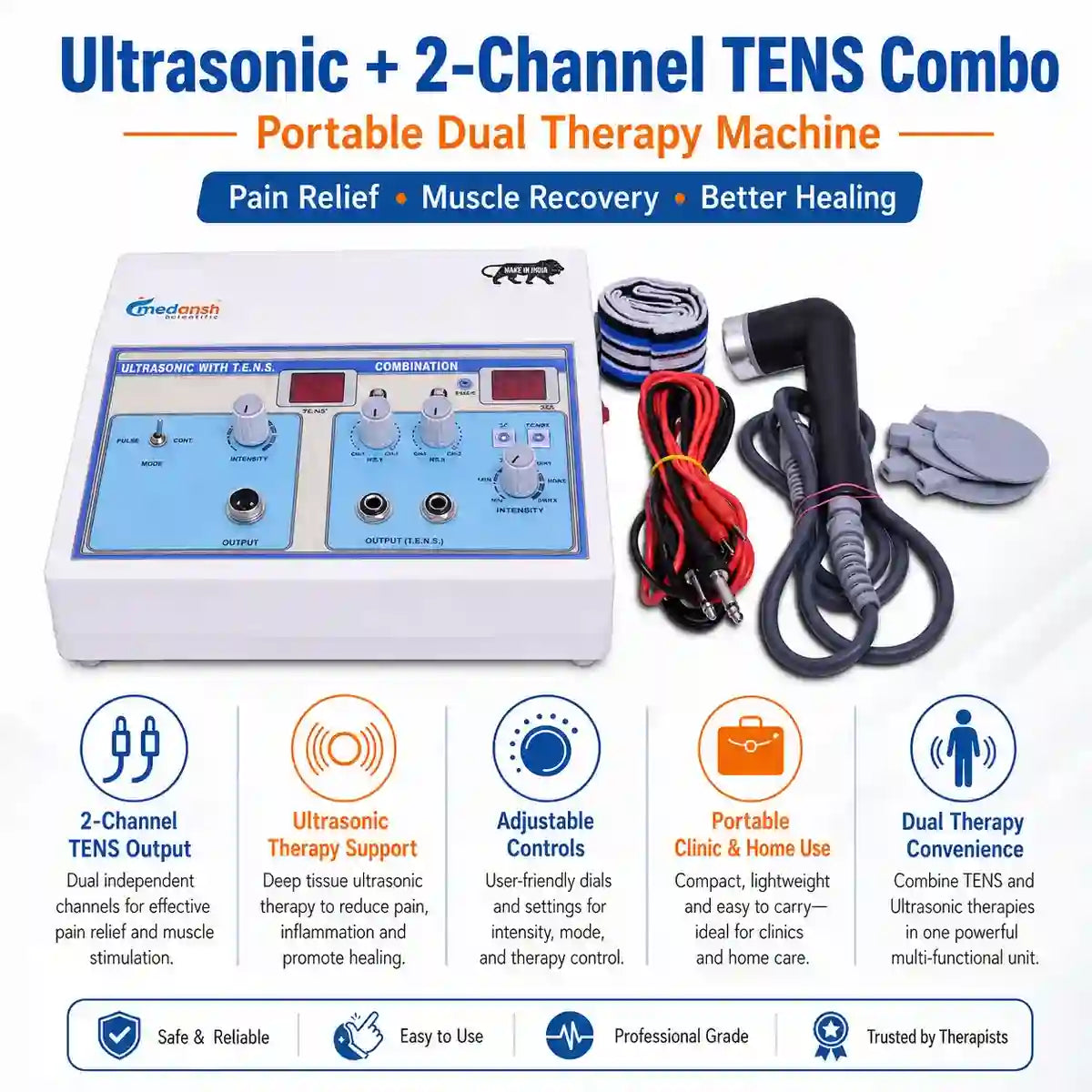

Key Features

• 1MHz ultrasound probe: Professional-grade crystal with a 5cm² effective radiating area
• 2 TENS channels: Independent intensity control on each channel, so two areas can be set differently

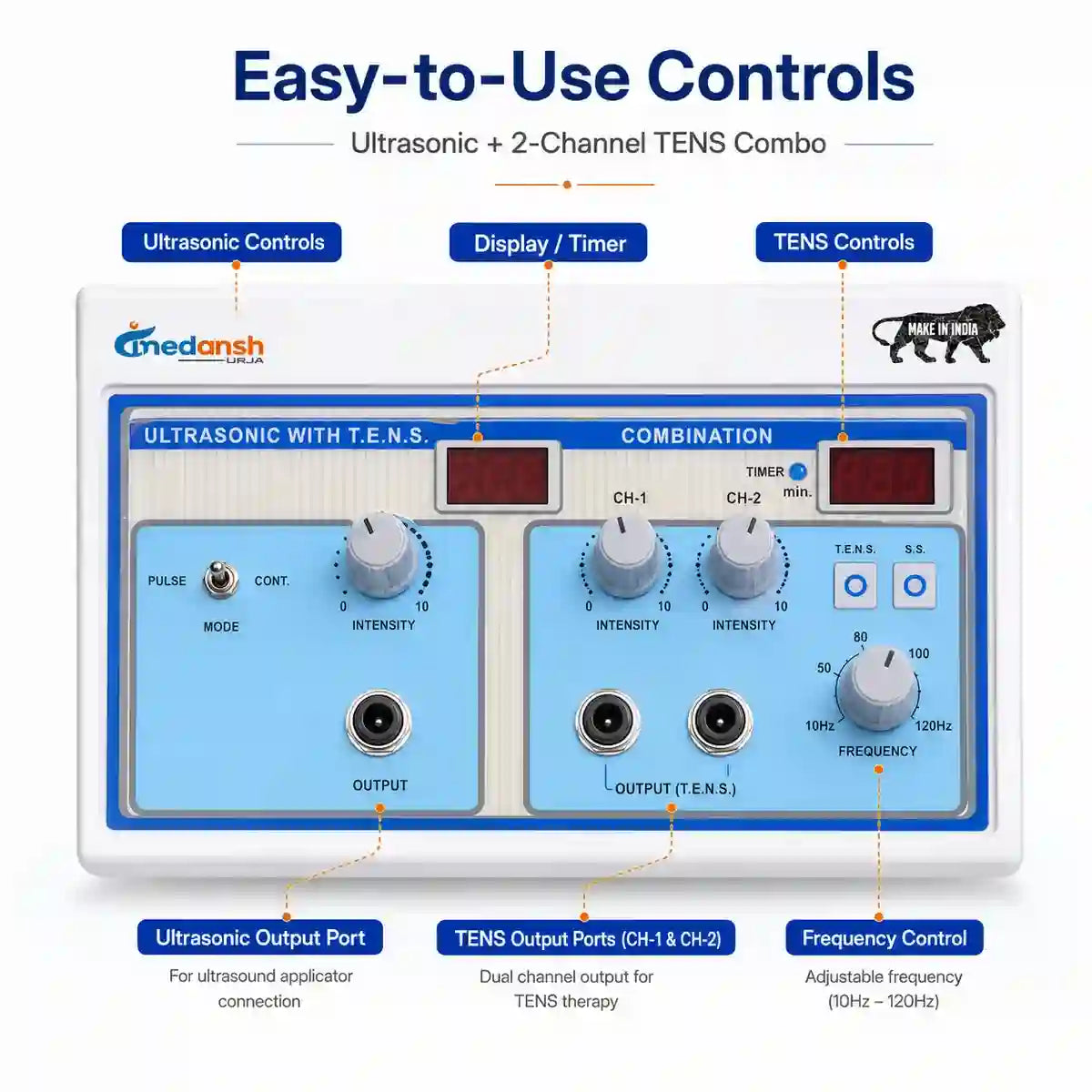

• Digital display: Clear LCD showing all treatment parameters at a glance
• Continuous + pulsed ultrasound: Both modes available, suited to acute and chronic conditions respectively
• Compact and lightweight: Built for home use and portable practice, not just clinic benchtops
• Mains powered: Runs on 220–240V AC, so there's no session-length limit from battery charge

What's in the Box

Every unit ships with the ultrasound probe, 4 electrode pads, 2 lead wires, and 100ml of conductive gel — everything needed to start both ultrasound and TENS sessions without buying separate consumables first. Pads and gel are standard physiotherapy consumables that can be restocked as needed.

Specifications

• Ultrasound: 1MHz, 0.1–2.5 W/cm²
• TENS: 2 channels, 1–150Hz, 50–300μs pulse width
• Modes: Continuous, Pulsed (ultrasound); Continuous, Burst, Modulated (TENS)
• Includes: Ultrasound probe, 4 electrode pads, 2 lead wires, 100ml gel
• Warranty: 1 year
• Country of origin: India

Getting the Most from Combined Therapy

As a general routine, ultrasound is typically applied first to warm and prepare the tissue, followed by TENS for ongoing pain control during or after activity — though the right sequence and settings for a specific condition are best confirmed with a physiotherapist, especially for the first few sessions. Keeping the gel bottle topped up matters more than it seems: dry patches under the ultrasound head reduce contact and can make sessions less effective, so reapplying gel generously each time is worth the extra few seconds.

Frequently Asked Questions

Should I buy the 2-channel or 4-channel version?
The 2-channel is a good fit for home use and small clinics treating a handful of patients a day. The 4-channel suits busier clinics or patients who need pain relief in three or four areas in the same session.

Can this replace separate ultrasound and TENS machines?
Yes — it delivers the same core specifications as standalone machines at a lower combined cost. The trade-off is that you can't run ultrasound and TENS at exactly the same moment, only one after the other in the same session.

How often do I need to replace the gel or pads?
Gel dries out with use like any conductive gel, and electrode pads lose stickiness over repeated sessions — both are standard consumables that get restocked periodically rather than one-time purchases.

Manufacturer: Meddey Technologies Pvt. Ltd., C-75, First Floor, DDA Sheds, Industrial Area, Phase 1, Okhla, New Delhi – 110020. Phone: +91 8586-012345
