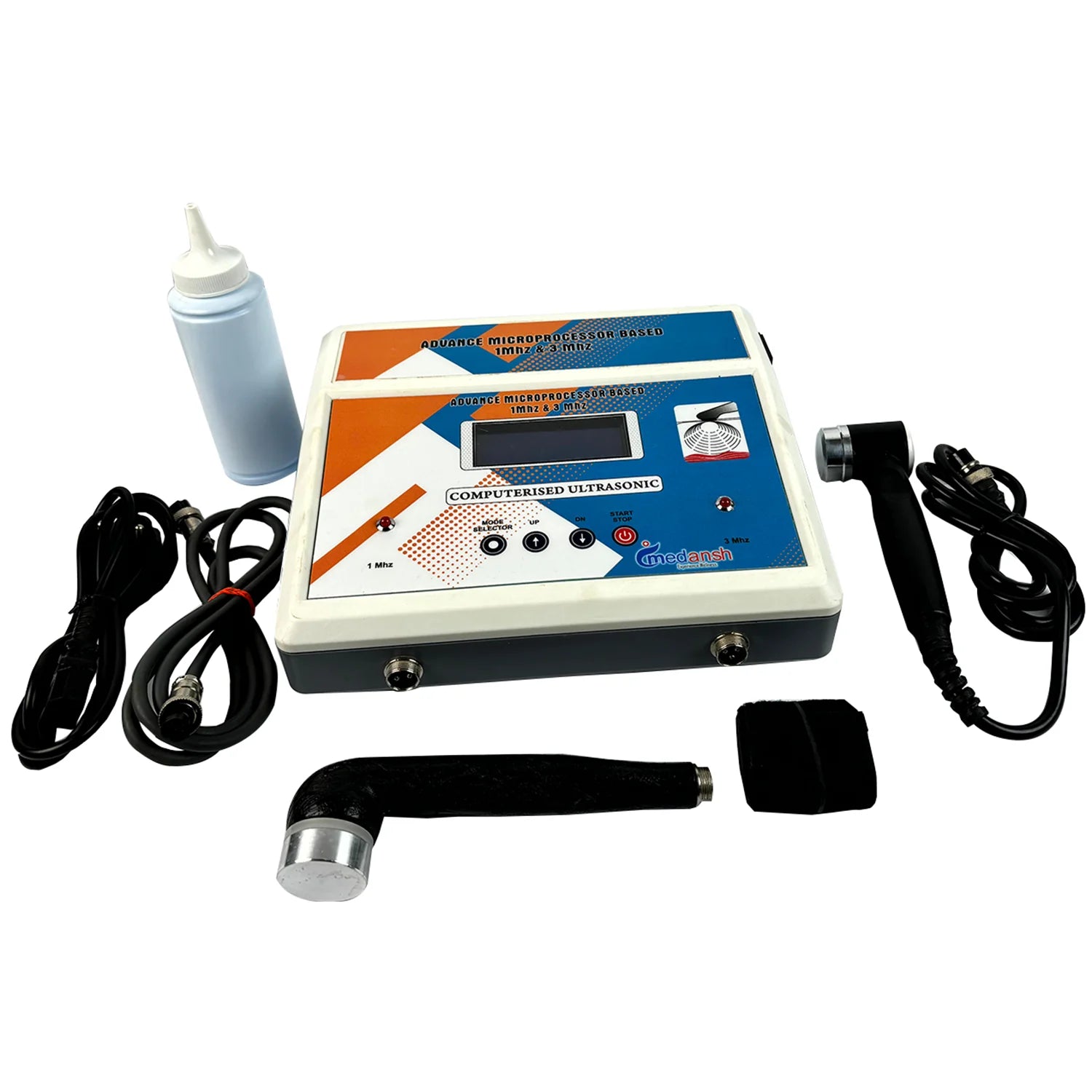

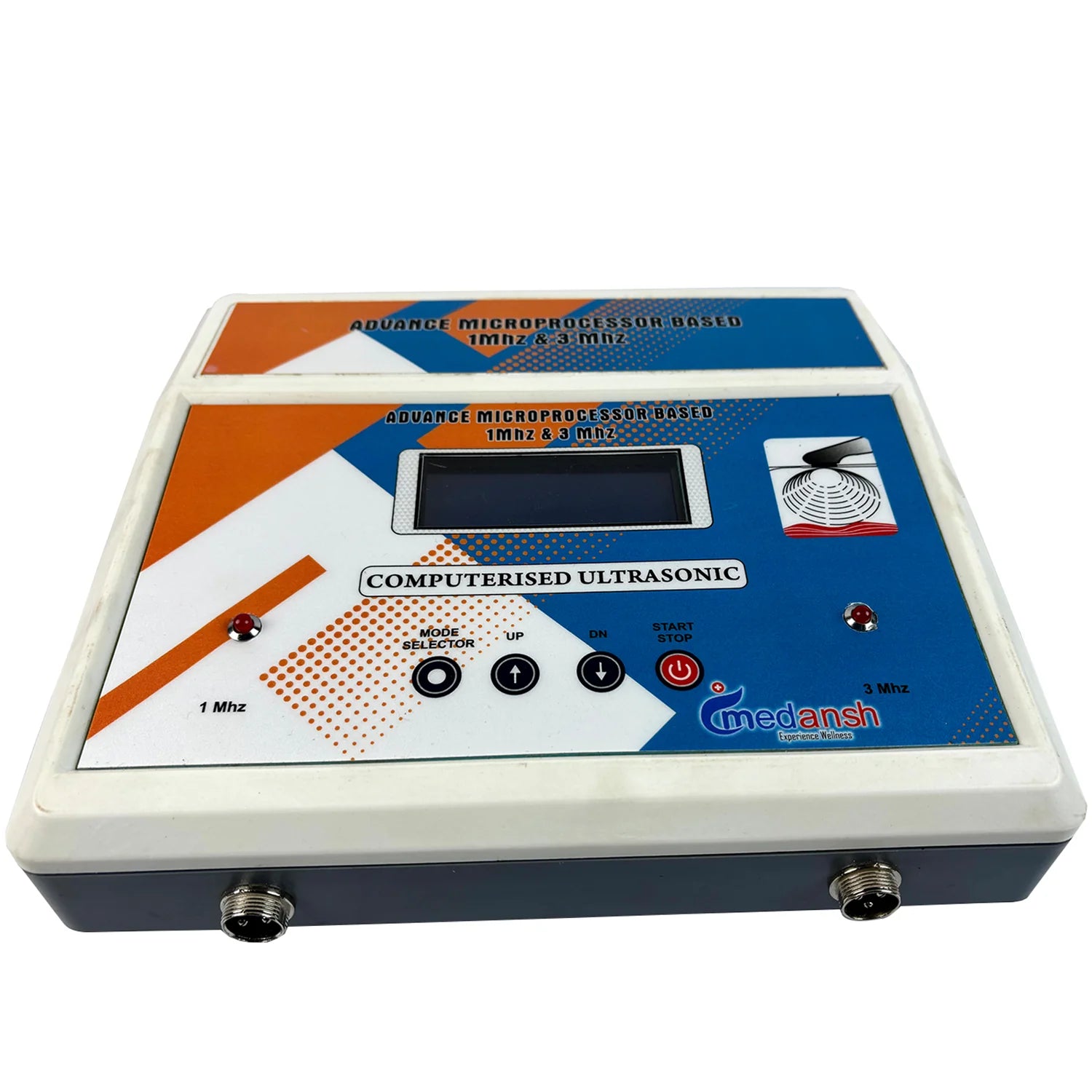

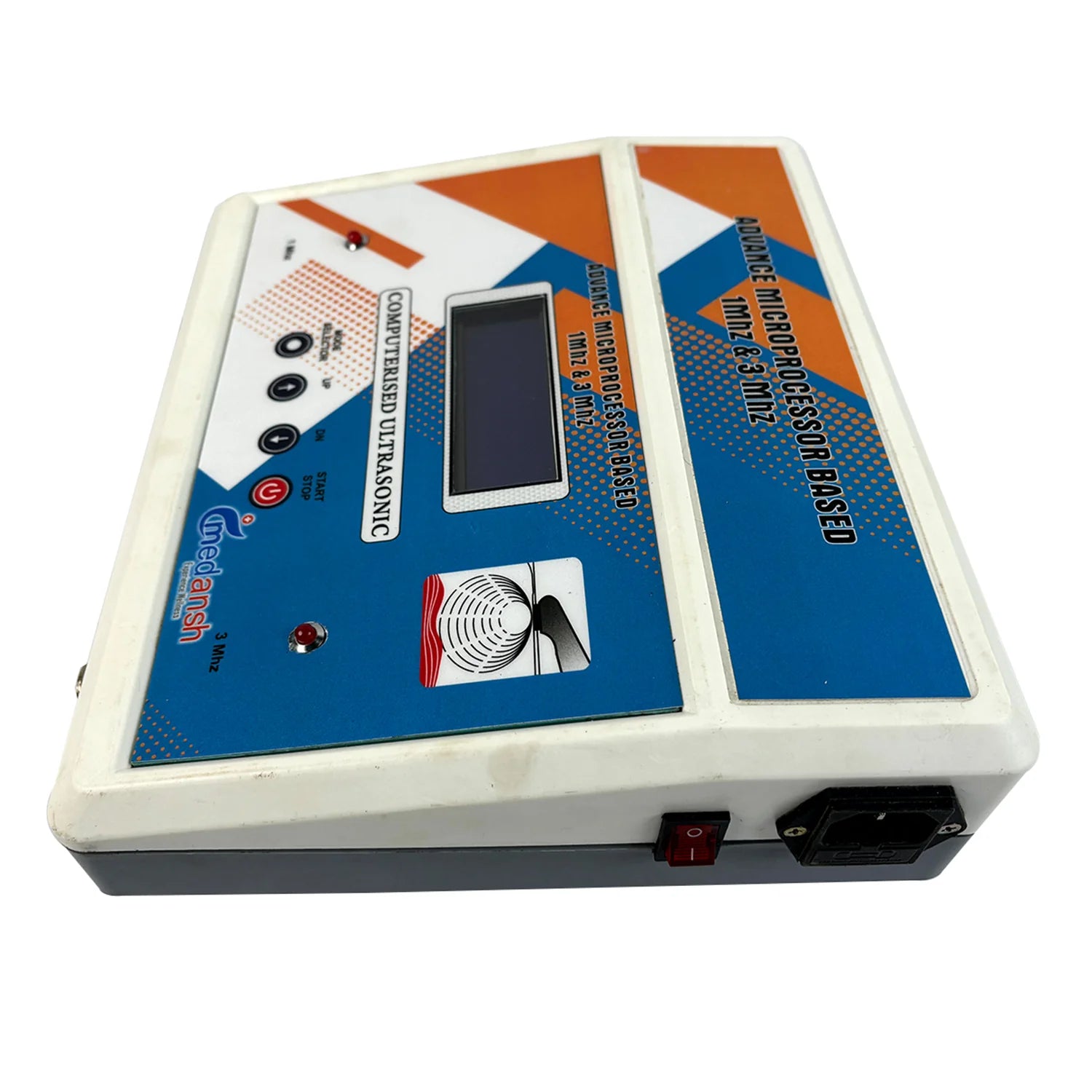

Medansh Ultrasonic LCD 27 Program Therapy Machine – 1MHz & 3MHz
The Medansh Ultrasonic LCD 27 Program Therapy Machine is a professional ultrasound therapy machine with 1MHz and 3MHz frequencies, designed for physiotherapy clinics, rehabilitation centres, hospitals, sports therapy facilities and advanced home rehabilitation requirements. It combines dual-frequency therapeutic ultrasound, 27 preset programs, continuous and pulsed operating modes, adjustable output intensity and a clear LCD display in one compact physiotherapy unit.
Therapeutic ultrasound uses high-frequency acoustic waves delivered through a treatment probe and conductive ultrasound gel. Depending on the selected frequency and operating mode, the device can be incorporated into rehabilitation programs involving deeper muscle groups, superficial tendons, ligaments, scar tissue and peri-articular soft tissues.
The dual-frequency configuration gives physiotherapists greater flexibility than a single-frequency ultrasonic therapy machine. The 1MHz setting is commonly selected when deeper tissue penetration is required, while the 3MHz setting is generally used for more superficial structures. The appropriate frequency, treatment time, intensity and mode should be selected according to the treatment area and therapy protocol.
Why Choose This Dual-Frequency Ultrasound Therapy Machine?
Basic ultrasound physiotherapy machines may provide only one operating frequency or require every parameter to be configured manually. The Medansh model combines 1MHz and 3MHz ultrasound therapy with 27 preset programs, helping simplify parameter selection for frequently used therapy applications.
Its LCD screen displays the selected program and treatment parameters clearly, helping the operator monitor the session without relying on unmarked controls. This makes the unit useful for professional settings where repeatability, visibility and convenient parameter adjustment are important.
Key Features
- Dual-Frequency Operation: Offers selectable 1MHz and 3MHz frequencies for deep and superficial therapy applications.
- 27 Preset Programs: Provides convenient program options for different physiotherapy requirements.
- Clear LCD Display: Shows treatment parameters for easier monitoring and operation.
- Continuous Mode: Supports continuous ultrasound output for suitable therapy protocols.
- Pulsed Mode: Offers pulsed ultrasound operation for protocols requiring intermittent energy delivery.
- Adjustable Duty Cycle: Includes 20%, 50% and 80% pulsed duty-cycle options.
- Adjustable Intensity: Output intensity can be configured according to the selected treatment protocol.
- Professional Physiotherapy Design: Suitable for clinics, hospitals, rehabilitation centres and sports therapy practices.
- Compact Construction: Occupies limited space on a physiotherapy workstation or treatment trolley.
- One-Year Warranty: Supplied with Medansh warranty support for added purchase confidence.
Understanding 1MHz and 3MHz Ultrasound Therapy
1MHz Ultrasound Therapy
The 1MHz frequency is generally selected for deeper muscles and soft tissues. It may be incorporated into physiotherapy programs involving larger joints, deeper muscle groups and tissues located further below the skin surface.
3MHz Ultrasound Therapy
The 3MHz frequency is generally used for superficial tissues such as tendons, ligaments, fascia and scar tissue situated closer to the skin surface. It allows the therapist to select a more suitable frequency for smaller or shallower treatment areas.
Continuous and Pulsed Therapy Modes
The Medansh therapeutic ultrasound machine supports both continuous and pulsed output. Continuous mode delivers ultrasound energy without interruption during the active treatment period. Pulsed mode delivers energy intermittently according to the selected duty cycle.
Mode selection should be based on the treatment objective, tissue condition and physiotherapy protocol. The machine provides 20%, 50% and 80% pulsed duty-cycle settings, giving the operator flexibility to configure the treatment according to the required application.
Benefits for Physiotherapy Practice
- Supports both deep and superficial soft-tissue applications.
- Provides frequency flexibility within a single therapy machine.
- Preset programs simplify routine parameter selection.
- LCD display improves visibility of treatment settings.
- Continuous and pulsed modes support varied therapy protocols.
- Adjustable intensity allows controlled energy delivery.
- Suitable for musculoskeletal rehabilitation programs.
- Compact design is practical for regular clinic use.
Common Physiotherapy Applications
This ultrasonic physiotherapy machine may be incorporated into rehabilitation programs involving:
- Frozen shoulder rehabilitation
- Tennis elbow and golfer’s elbow
- Plantar fascia rehabilitation
- Achilles tendon rehabilitation
- Muscle tightness and soft-tissue stiffness
- Myofascial trigger-point therapy
- Ligament sprain rehabilitation
- Post-immobilisation stiffness
- Scar-tissue management programs
- Neck, shoulder, back and knee physiotherapy
- Sports injury and musculoskeletal rehabilitation
Who Should Buy This Machine?
- Physiotherapy Clinics: Suitable for routine musculoskeletal and soft-tissue therapy sessions.
- Hospitals: Useful for physiotherapy, orthopaedic and rehabilitation departments.
- Rehabilitation Centres: Supports varied treatment protocols through dual-frequency operation.
- Sports Therapy Facilities: Suitable for muscle, tendon and ligament rehabilitation programs.
- Physiotherapy Colleges: Useful for demonstrations and practical electrotherapy training.
- Advanced Home Users: May be used after learning correct probe movement, gel application and parameter selection.
Technical Specifications
| Product Type | Therapeutic Ultrasound Machine |
| Brand | Medansh |
| Operating Frequencies | 1MHz and 3MHz |
| Preset Programs | 27 Programs |
| Display | LCD Display |
| Operating Modes | Continuous and Pulsed |
| Pulsed Duty Cycle | 20%, 50% and 80% |
| Output Intensity | 0.1–2.5 W/cm² |
| Operation | Electrical |
| Recommended Use | Clinical, Hospital, Rehabilitation and Trained Home Use |
| Warranty | 1 Year |
| Country of Origin | India |
General Operating Guidance
- Inspect the treatment area and clean the skin before application.
- Apply sufficient conductive ultrasound gel to maintain proper acoustic contact.
- Select 1MHz or 3MHz according to the depth of the target tissue.
- Select a preset program or configure the appropriate operating parameters.
- Begin with a low output intensity and adjust according to the treatment protocol.
- Keep the ultrasound probe moving slowly in overlapping circular or linear movements.
- Do not hold the active probe stationary over one point.
- After the session, switch off the output and clean the probe according to the user manual.
Why Buy from Meddey?
- Genuine Medansh physiotherapy equipment
- Secure online ordering through Meddey.com
- GST invoice for eligible purchases
- Bulk-order assistance for clinics and institutions
- Product guidance and after-sales assistance
- Delivery support across serviceable locations
Frequently Asked Questions
What is an ultrasound therapy machine?
An ultrasound therapy machine is a physiotherapy device that transfers high-frequency acoustic energy into body tissues through a treatment probe and conductive gel. It is commonly incorporated into musculoskeletal and soft-tissue rehabilitation programs.
What is the difference between 1MHz and 3MHz ultrasound?
The 1MHz frequency is generally selected for deeper tissues, while 3MHz is commonly selected for tissues located closer to the skin surface. Frequency selection should match the depth and size of the treatment area.
What is the benefit of 27 preset programs?
Preset programs simplify operation by providing conveniently configured options for commonly used therapy applications. The operator should still confirm that the selected program is appropriate for the treatment objective.
Does the machine support continuous and pulsed modes?
Yes. It supports continuous ultrasound output and pulsed output with 20%, 50% and 80% duty-cycle options.
Can the intensity be adjusted?
Yes. The output intensity is adjustable from 0.1 to 2.5 W/cm² according to the selected therapy protocol and treatment area.
Is ultrasound gel necessary?
Yes. A suitable conductive ultrasound gel is required between the probe and skin to maintain acoustic contact. Do not operate the active probe on dry skin.
Should the ultrasound probe be kept moving?
Yes. During active therapy, the probe should be moved continuously in slow overlapping movements. It should not be held stationary over one point.
Is this machine suitable for physiotherapy clinics?
Yes. Its dual frequencies, 27 programs, adjustable intensity, LCD display and continuous or pulsed operation make it suitable for professional physiotherapy and rehabilitation environments.
Can this ultrasound machine be used at home?
Advanced home users may operate it after learning correct frequency selection, parameter adjustment, gel application and probe movement. The user manual should be read carefully before operation.

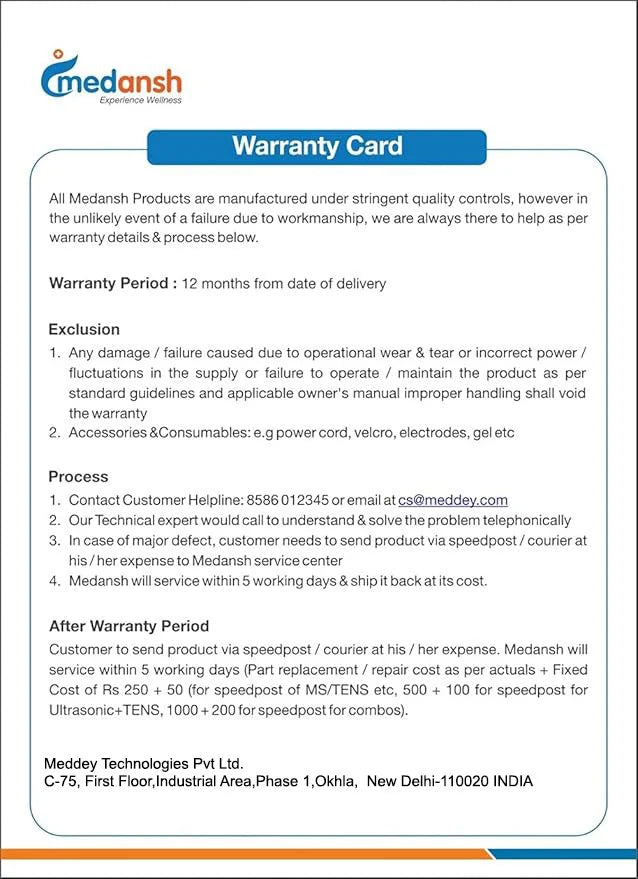

What warranty does the machine include?
The Medansh Ultrasonic LCD 27 Program Machine is supplied with a one-year warranty.
Safety Information
- Read the complete user manual before operating the machine.
- Always use suitable conductive ultrasound gel during therapy.
- Keep the active probe moving continuously over the treatment area.
- Do not apply over the eyes, reproductive organs or areas with impaired sensation.
- Do not apply over known malignancy, active bleeding or infected tissue.
- Avoid application over growth plates in children unless specifically indicated.
- Do not immerse the machine or electrical components in water.
- Stop operation if excessive warmth, pain, discomfort or an unusual reaction occurs.
Country of Origin: India
Marketed By: Meddey Technologies Pvt. Ltd., C-75, First Floor, DDA Sheds, Industrial Area, Phase 1, Okhla, New Delhi – 110020, India.
