BEDSIDE MONITOR

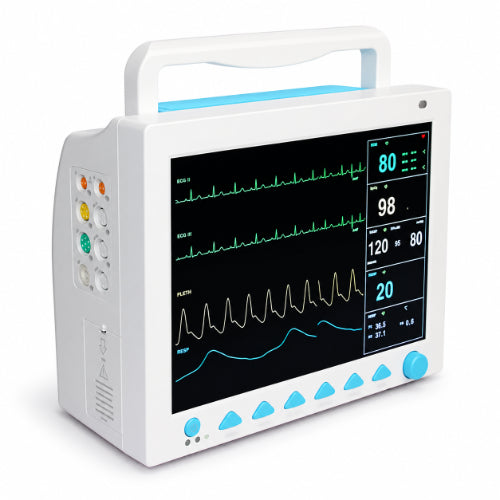

CONTEC CMS8000 Multiparameter Patient Monitor 12.1 Inch TFT

Rs. 39,400 Rs. 50,600

Save 22%

In Stock

Accessories:Adult

Variant

Delivery applicable

Enter your pincode to confirm serviceability and estimated delivery.

Free Shipping on orders ₹999+

100% Genuine Products

Dedicated Support

Secure Payments

Need help choosing or using this product? Our team can help with product questions and orders.

Chat with support

Meddey Technologies Pvt. Ltd.

C-75, First Floor, DDA Sheds Industrial Area,Phase 1,
Okhla, New Delhi-110020 INDIA
GST No:- 07AAKCM6565B2ZD

Medansh Customer Care:

Phone / WhatsApp :85 86 012345

Email: cs@meddey.com

About this product

The CMS8000 multiparameter patient monitor is designed for professional monitoring of several vital signs on one screen. It supports adult, pediatric and neonatal patients in hospitals, ICU, CCU and other clinical settings.

In addition, the 12.1-inch colour TFT display shows real-time measurements and waveforms. Therefore, healthcare professionals can review important patient information clearly from one bedside unit.

Standard monitoring includes ECG, respiration, SpO2, pulse rate, non-invasive blood pressure and temperature. As a result, healthcare teams can monitor several important parameters together.

Need help with configuration or institutional pricing? Contact Meddey for product guidance, variant confirmation, COD / partial payment and GST invoice. 👉 WhatsApp +91 8586-012345

CMS8000 Multiparameter Patient Monitor – Key Features

12.1-Inch TFT Display The colour screen displays real-time patient data. In addition, it can show multiple waveforms clearly.

Multiparameter Monitoring ECG, RESP, SpO2, PR, NIBP and dual-channel temperature are standard monitoring parameters.

Up to 8 Waveforms The monitor can show up to eight waveforms together. Therefore, clinicians can review several parameters from one screen.

Adult, Pediatric & Neonatal The monitor supports different patient categories. However, suitable accessories should match the selected patient type.

Trend & Record Storage The listed configuration includes 96-hour trend data. In addition, it stores up to 500 NIBP records.

Visual & Audible Alarms Adjustable alarms alert healthcare staff when values cross configured limits.

What Is a Multiparameter Patient Monitor?

A multiparameter patient monitor displays several vital signs from one device.

For example, a clinician may view heart activity, oxygen saturation, blood pressure, breathing rate and temperature together. Therefore, the monitor provides a broader clinical view than a single-parameter device.

However, the monitor does not make a diagnosis by itself. Instead, trained healthcare professionals interpret the readings together with the patient's condition.

CONTEC CMS8000 Patient Monitor – Vital Parameters Explained

ECG Monitoring on the CONTEC CMS8000 Patient Monitor

ECG stands for electrocardiogram. In simple terms, it records the electrical activity of the heart and displays it as a waveform.

In addition, the listed configuration includes ST analysis and arrhythmia analysis. However, healthcare professionals must interpret these findings clinically.

NIBP Blood Pressure on the Multiparameter Patient Monitor

NIBP means non-invasive blood pressure. In other words, the monitor measures blood pressure with a cuff instead of an arterial catheter.

SpO2 Monitoring on the Vital Signs Monitor

SpO2 shows the percentage of oxygen carried in the blood. Therefore, a compatible SpO2 probe helps clinicians observe oxygen-saturation readings.

RESP Monitoring on the Bedside Patient Monitor

RESP refers to respiration or breathing monitoring. As a result, clinicians can observe the breathing rate and related waveform.

Pulse Rate Monitoring on the CMS8000 Patient Monitor

PR means pulse rate. In simple terms, it shows how many pulse beats occur each minute.

Temperature Monitoring on the Multipara Monitor

The standard CMS8000 configuration supports dual-channel temperature monitoring. Therefore, temperature can be included with the other monitored vital parameters.

ICU Patient Monitor for Adult, Pediatric & Neonatal Care

The ICU patient monitor supports adult, pediatric and neonatal patient categories. Therefore, hospitals can select monitoring settings according to the patient type.

In addition, accessory options may differ between adult and neonatal configurations. For this reason, buyers should confirm the selected variant before ordering.

For professional home-care or institutional setups, trained healthcare personnel should manage the monitor. Moreover, they should interpret readings according to the patient's clinical condition.

Vital Signs Monitor with 96-Hour Trend Data

This vital signs monitor provides trend information that helps clinicians review changes over time.

For example, the current Meddey configuration lists up to 96 hours of graphical and tabular trend data. In addition, the unit can store up to 500 NIBP measurements.

Therefore, healthcare teams can review previous readings when assessing changes in the patient's monitored parameters.

Bedside Patient Monitor with 8-Channel Waveform Display

The bedside patient monitor offers different screen formats for viewing clinical information.

Moreover, up to eight waveforms can appear at the same time. As a result, several parameters can be observed from one display.

However, clinicians should set alarm limits and screen options according to each patient's monitoring needs.

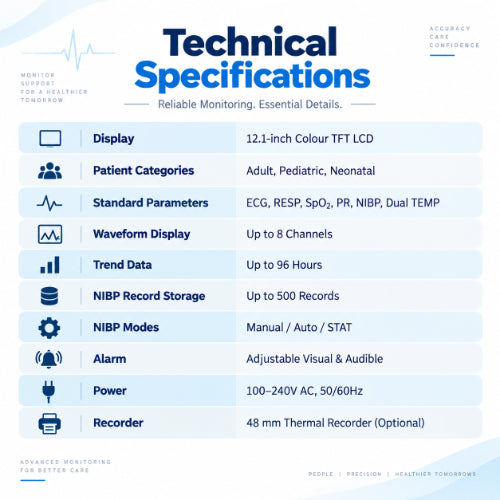

CMS8000 Multiparameter Patient Monitor – Technical Specifications

Product	CONTEC CMS8000 Multiparameter Patient Monitor
Display	12.1-Inch Colour TFT LCD
Patient Categories	Adult, Pediatric and Neonatal
Standard Parameters	ECG, RESP, SpO2, PR, NIBP and Dual-Channel TEMP
Waveform Display	Up to 8 Channels Simultaneously
Trend Data	Up to 96 Hours Listed on Current Meddey Configuration
NIBP Record Storage	Up to 500 Records
NIBP Modes	Manual, Auto and STAT
Alarm	Adjustable Visual and Audible Alarms
Power	100–240V AC, 50/60Hz with Replaceable Internal Battery
Recorder	48 mm Thermal Recorder – Optional
IBP	Optional / Upgradable Depending on Configuration
CO2 / EtCO2	Optional Depending on Configuration

CONTEC CMS8000 Patient Monitor – ECG Specifications

First, 5-lead or 12-lead ECG is selectable on the listed configuration.
Adult heart-rate range is 15–300 bpm.
In addition, pediatric / neonatal heart-rate range is 15–350 bpm.
Heart-rate accuracy is ±1 bpm or ±1%, whichever is greater.
Moreover, ST-segment analysis is listed.
Finally, arrhythmia analysis is also listed.

ST-segment analysis examines part of the ECG waveform. Meanwhile, arrhythmia analysis helps flag unusual heart rhythms. However, these functions support clinical review and do not provide an independent diagnosis.

Multiparameter Patient Monitor – NIBP & SpO2 Specifications

NIBP Specifications on the CMS8000 Multipara Monitor

Adult listed measurement range: 10–270 mmHg.
In addition, resolution is 1 mmHg.
Mean accuracy is ±5 mmHg.
Standard deviation is ±8 mmHg.
Finally, systolic, diastolic and mean-pressure alarms are listed.

SpO2 Specifications on the Vital Signs Monitor

Measurement range: 0–100%.
Listed accuracy: ±2% between 70–100%.
However, accuracy below 70% is not specified in the current product information.

Bedside Patient Monitor – RESP, Pulse & Temperature

RESP Range on the CMS8000 Patient Monitor

Adult respiration range: 0–120 rpm.
In addition, pediatric / neonatal range is 0–150 rpm.
Apnea alarm is listed.

Pulse Rate Range on the Multiparameter Patient Monitor

Pulse-rate range: 10–270 bpm.
In addition, listed accuracy is ±2 bpm.

Temperature Range on the Vital Signs Monitor

Temperature range: 0–50°C.
In addition, resolution is 0.2°C.

Multipara Monitor with Optional IBP & CO2

IBP means invasive blood pressure. In simple terms, it measures pressure using an invasive catheter and transducer.

CO2 / EtCO2 monitoring measures carbon dioxide related to breathing. Therefore, it can provide an additional respiratory parameter when the correct optional module is installed.

However, CONTEC lists IBP and CO2 as optional parameters. For this reason, buyers should confirm the exact CMS8000 configuration before ordering.

CMS8000 Multiparameter Patient Monitor – Box Contents

Box contents depend on the selected patient configuration. Therefore, buyers should confirm the accessory variant before purchase.

CMS8000 monitor
Power connector
Adult or neonatal cuff and cable, depending on selection
ECG leads
SpO2 probe
Temperature probe
User manual

In addition, adult, neonatal or combined accessory requirements may vary by selected variant.

Important Safety Guidance for the ICU Patient Monitor

First, use the monitor according to professional clinical procedures.
Next, choose the correct adult, pediatric or neonatal accessories.
In addition, set alarm limits according to the patient's clinical needs.
However, do not rely on one reading without considering the patient's condition.
Also, check sensors, cuffs, cables and electrodes before use.
If a value appears unexpected, confirm it using suitable clinical assessment.
Finally, trained professionals should interpret critical monitoring information.

Who Should Use a CMS8000 Multiparameter Patient Monitor?

The CMS8000 multiparameter patient monitor is mainly intended for hospitals, ICU and CCU departments, emergency rooms, operation theatres, recovery areas and clinics.

In addition, selected institutional or professional home-care setups may use the device when qualified healthcare personnel manage monitoring.

Therefore, this professional bedside monitor should not be positioned as a basic household self-checking device.

CMS8000 Multiparameter Patient Monitor FAQs

Which Parameters Does the CMS8000 Multiparameter Patient Monitor Measure?

The standard configuration monitors ECG, RESP, SpO2, pulse rate, NIBP and dual-channel temperature.

Does the CONTEC CMS8000 Patient Monitor Have a 12.1-Inch Screen?

Yes. The CMS8000 uses a 12.1-inch colour TFT LCD. Therefore, clinicians can review several measurements and waveforms on one display.

Can This ICU Patient Monitor Be Used for Neonatal Patients?

Yes. The monitor supports adult, pediatric and neonatal categories. However, suitable accessories should be selected for the patient type.

Is IBP Standard on This Multipara Monitor?

No. IBP is listed as an optional or upgradable parameter. Therefore, buyers should confirm the exact supplied configuration.

Does the Vital Signs Monitor Support CO2 or EtCO2?

CO2 monitoring is available as an optional configuration. Therefore, it should not be assumed to be included with every CMS8000.

How Many Waveforms Can the Bedside Patient Monitor Show?

The CMS8000 can display up to eight waveforms simultaneously. As a result, clinicians can observe several parameters from one screen.

Does the CMS8000 Patient Monitor Store NIBP Records?

Yes. The current Meddey configuration lists storage for up to 500 NIBP measurement records.

Does the Multiparameter Patient Monitor Have a Battery?

Yes. The CMS8000 supports an internal battery. Therefore, the monitor can continue operating for appropriate periods away from mains power, subject to battery condition.
