Contec CMS5100 Patient Monitor with NIBP, SpO2 & PR
Choose options

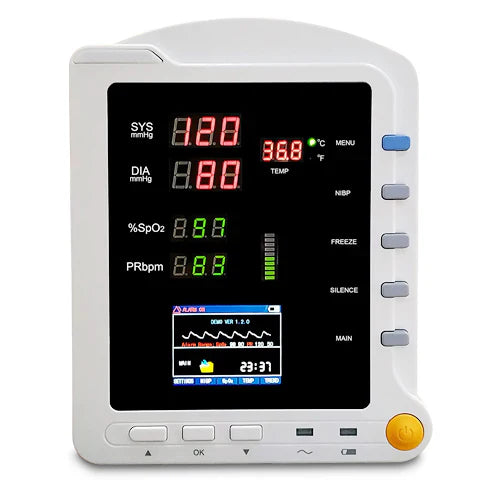

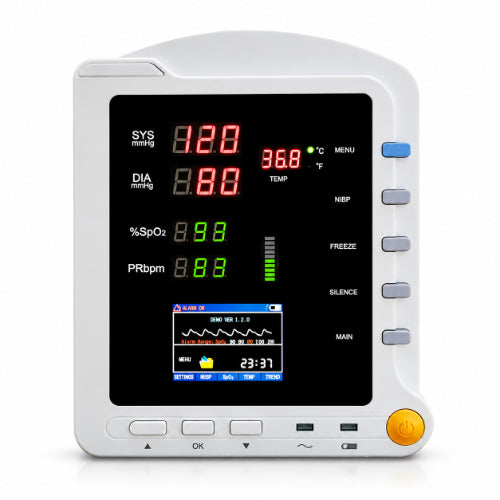

Contec CMS5100 Patient Monitor with NIBP, SpO2 & PR
The Contec CMS5100 patient monitor is a compact vital-signs monitoring system for NIBP, SpO2 and pulse rate. It supports monitoring for adult, pediatric and neonatal patients.
Moreover, the CMS5100 combines a 2.8-inch colour TFT display with configurable alarms, measurement-data storage and a rechargeable lithium-polymer battery. Therefore, healthcare users can monitor several important parameters from one compact device.
Ordering Information: Prepaid or Partial COD options are available for this product. In addition, you can call or WhatsApp +91 8586-012345 for product-related enquiries.
Key Features of Contec CMS5100 Patient Monitor
- NIBP Monitoring: Measures systolic, diastolic and mean arterial pressure using the oscillometric method.
- SpO2 Monitoring: Measures peripheral oxygen saturation and displays the SpO2 plethysmogram.
- Pulse Rate Monitoring: In addition, the device measures pulse rate during SpO2 monitoring.
- 2.8-Inch TFT Display: Displays measurements, trends, alarms and system information on a 320 × 240 colour screen.
- Visual and Audible Alarms: Moreover, users can set upper and lower alarm limits for relevant monitored parameters.
- Large Data Memory: Stores up to 2,000 groups of NIBP data and 78,000 groups of SpO2 data.
- Trend Review: Furthermore, users can review up to 24 hours of NIBP trends and 22 hours of SpO2 trends.
- Rechargeable Battery: The built-in lithium-polymer battery supports portable monitoring when mains power is unavailable.
NIBP Monitoring with the Contec CMS5100
The CMS5100 uses the oscillometric method for non-invasive blood pressure measurement. It supports manual, automatic and continuous NIBP measurement modes.
In addition, the monitor displays systolic pressure, diastolic pressure and mean arterial pressure. NIBP measurements use a resolution of 1 mmHg.
Moreover, CONTEC specifies a maximum mean error of ±5 mmHg and a maximum standard deviation of 8 mmHg for the NIBP system.
SpO2 and Pulse Rate Monitoring
The Contec CMS5100 patient monitor displays SpO2 across a measurement range of 0% to 100%. CONTEC specifies an SpO2 accuracy of ±2% from 70% to 100%.
Meanwhile, the pulse-rate function covers 25 to 250 bpm. It provides a resolution of 1 bpm.
Furthermore, the monitor displays an SpO2 plethysmogram. As a result, users can view pulse waveform information alongside the numerical readings.
Clear 2.8-Inch TFT Display
The CMS5100 includes a 2.8-inch 320 × 240 colour TFT LCD. The screen presents measurement data, trend information, alarms and system settings.
Moreover, the compact display keeps important monitoring information together in one interface. Therefore, healthcare users can review current values and recent monitoring information conveniently.
Visual and Audible Monitoring Alerts
The CMS5100 provides visual and audible alarms for monitored parameters. Users can also configure upper and lower alarm limits where supported.
For example, the system supports alarms related to systolic pressure, diastolic pressure, SpO2 and pulse rate. As a result, the monitor can alert users when measured values move beyond configured limits.
CMS5100 Data Storage and Trend Review
The monitor uses non-volatile memory for measurement storage. It can store up to 2,000 groups of NIBP data and 78,000 groups of SpO2 data.
In addition, users can review an NIBP trend graph covering up to 24 hours and an SpO2 trend graph covering up to 22 hours. Therefore, recent monitoring information remains available for convenient review.
Adult, Pediatric and Neonatal Monitoring
CONTEC lists the CMS5100 for monitoring adult, pediatric and neonatal patients. However, users must select the correct patient mode and appropriate accessories before measurement.
Therefore, healthcare users should always follow the manufacturer's operating instructions for the patient category being monitored.
Where Can the Contec CMS5100 Patient Monitor Be Used?
The CMS5100 has a compact and portable design. Therefore, CONTEC lists it for a range of medical monitoring environments, including:
- Hospitals and patient wards
- Medicine and surgery departments
- Operating rooms
- ICU and CCU environments
- Emergency rooms
- Obstetrics and gynecology departments
- Pediatric monitoring environments
- Indoor, outdoor and ambulance monitoring where appropriate

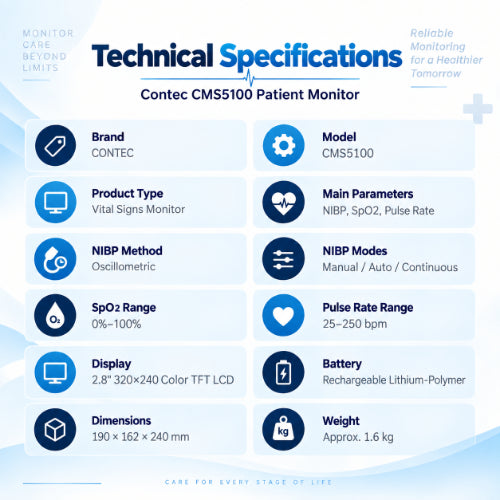

Contec CMS5100 Patient Monitor Specifications
| Specification | Details |
|---|---|
| Brand | CONTEC |
| Model | CMS5100 |
| Product Type | Patient / Vital Signs Monitor |
| Main Parameters | NIBP, SpO2 and Pulse Rate |
| NIBP Method | Oscillometric |
| NIBP Modes | Manual / Auto / Continuous |
| NIBP Resolution | 1 mmHg |
| NIBP Performance | Maximum mean error ±5 mmHg; maximum standard deviation 8 mmHg |
| SpO2 Range | 0%–100% |
| SpO2 Resolution | 1% |
| SpO2 Accuracy | ±2% from 70%–100%; below 70% unspecified |
| Pulse Rate Range | 25–250 bpm |
| Display | 2.8-inch, 320 × 240 colour TFT LCD |
| NIBP Storage | Up to 2,000 groups |
| SpO2 Storage | Up to 78,000 groups |
| Battery | Built-in rechargeable lithium-polymer battery |
| Dimensions | 190 × 162 × 240 mm |
| Weight | Approximately 1.6 kg |

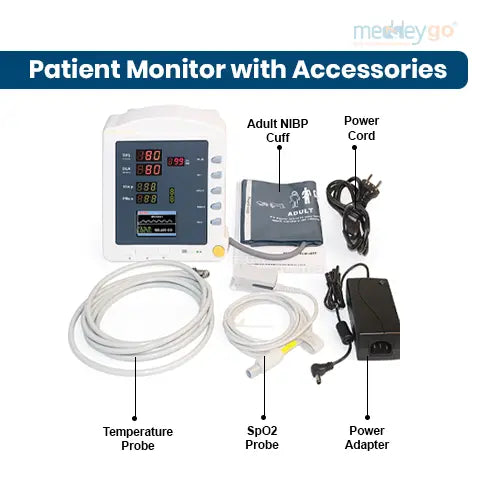

What Comes with the Contec CMS5100?
The listed CMS5100 package includes the main monitoring accessories. Specifically, the package information includes:
- 1 × CMS5100 Patient Monitor
- 1 × User Manual
- 1 × Power Cord
- 1 × Power Adapter
- 1 × SpO2 Sensor
- 1 × Adult NIBP Cuff
- 1 × NIBP Extension Tube
However, CMS5100 configurations can vary. Therefore, confirm optional parameters or additional probes before ordering if they are specifically required.
Contec CMS5100 Patient Monitor FAQs
What does the Contec CMS5100 patient monitor measure?
The CMS5100 monitors NIBP, SpO2 and pulse rate. Therefore, it combines several common vital-sign measurements within one compact monitor.
How much measurement data can the CMS5100 store?
It can store up to 2,000 NIBP groups and 78,000 SpO2 groups. In addition, users can review recent NIBP and SpO2 trend graphs.
Does the CMS5100 provide monitoring alarms?
Yes. The monitor provides visual and audible alarms. Moreover, users can configure upper and lower limits for supported parameters.
Can CMS5100 monitor different patient age groups?
Yes. CONTEC lists adult, pediatric and neonatal monitoring support. However, the correct patient mode and suitable accessories should always be selected.
Does the CMS5100 have a rechargeable battery?
Yes. It uses a built-in rechargeable lithium-polymer battery. As a result, the monitor can continue to support portable operation when direct mains power is unavailable.
Shop Contec CMS5100 Patient Monitor
The Contec CMS5100 patient monitor combines NIBP, SpO2 and pulse-rate monitoring with a compact colour display, configurable alarms and measurement storage.
Moreover, its rechargeable battery and compact construction support flexible monitoring across different healthcare environments. Therefore, it offers a practical option when several basic vital signs need to be monitored from one device.
Important Use Note
Patient-monitor measurements require appropriate interpretation. Therefore, trained users should follow CONTEC's operating instructions, select the correct patient mode and use suitable accessories for each patient.
